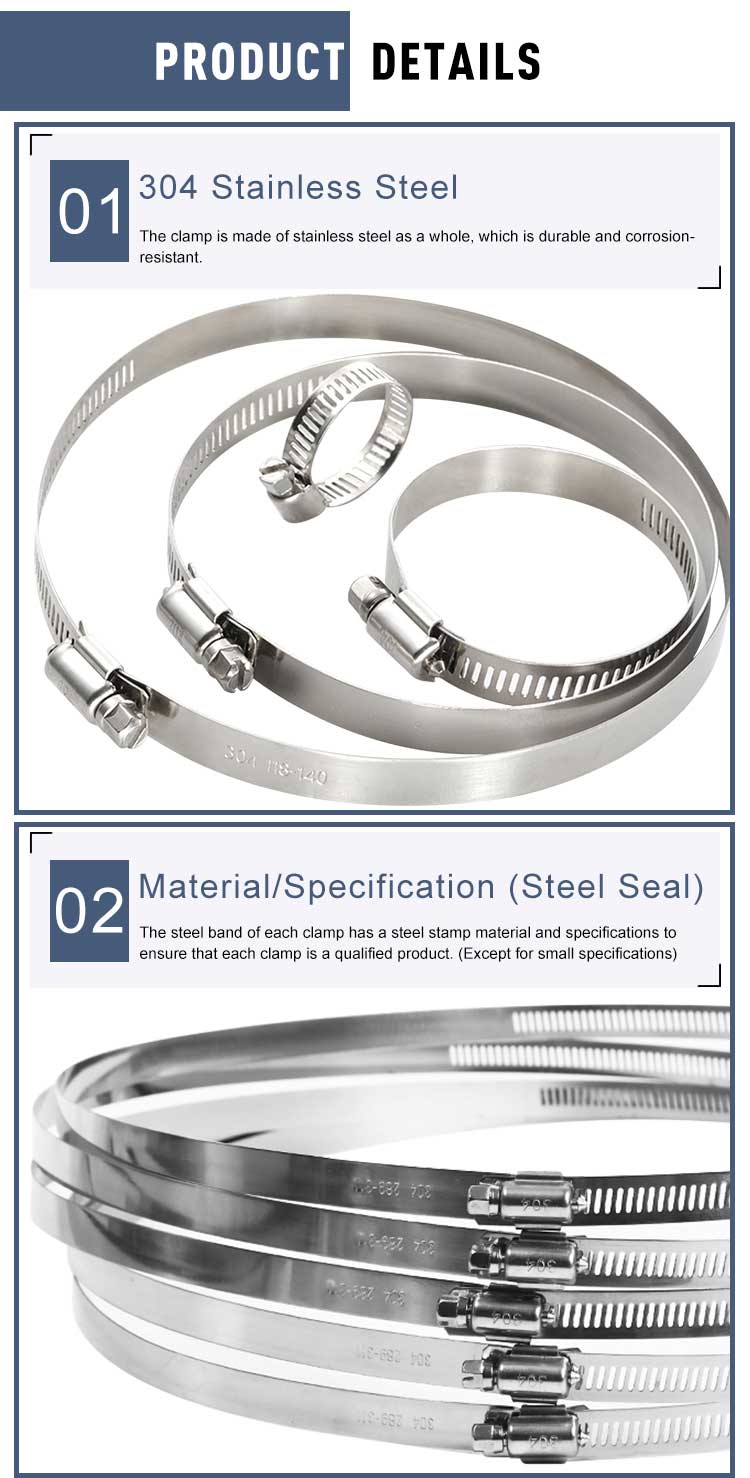

1.Material: Stainless Steel 201/304/316.
2.Features: A certain binding range can be controlled by screws, widely used in fixing pipes and automobile industry.Flame retardant and non-toxic. There are American, British and German type for chosen.
3.Working temperature: -60℃ to 550℃.
4.Color: Silver.
5.Certificates: CE, RoHS.
Adjustable Stainless Steel Hose Clamps for Secure Hose Connections

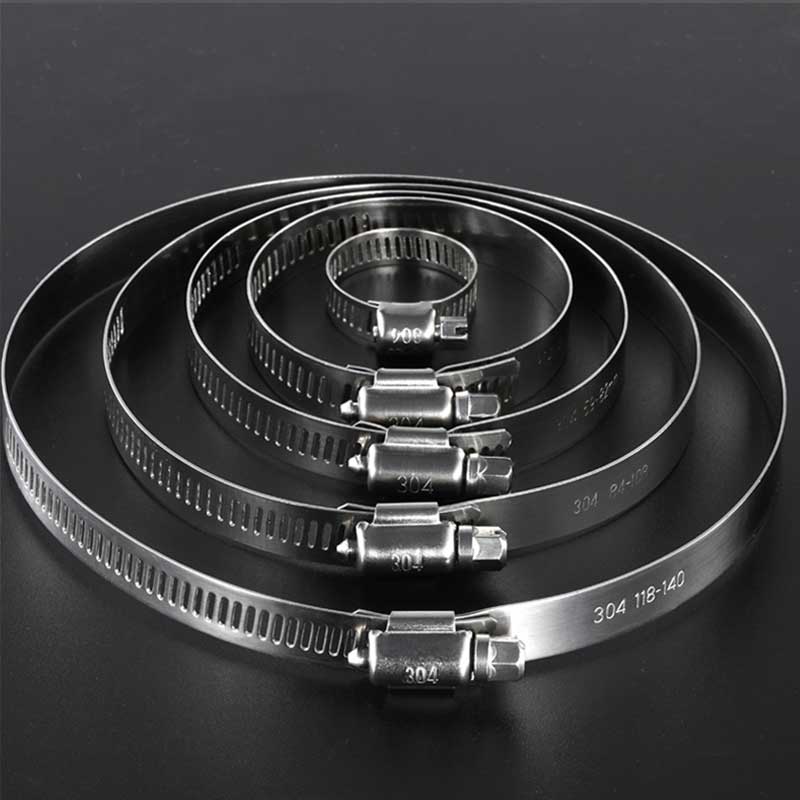

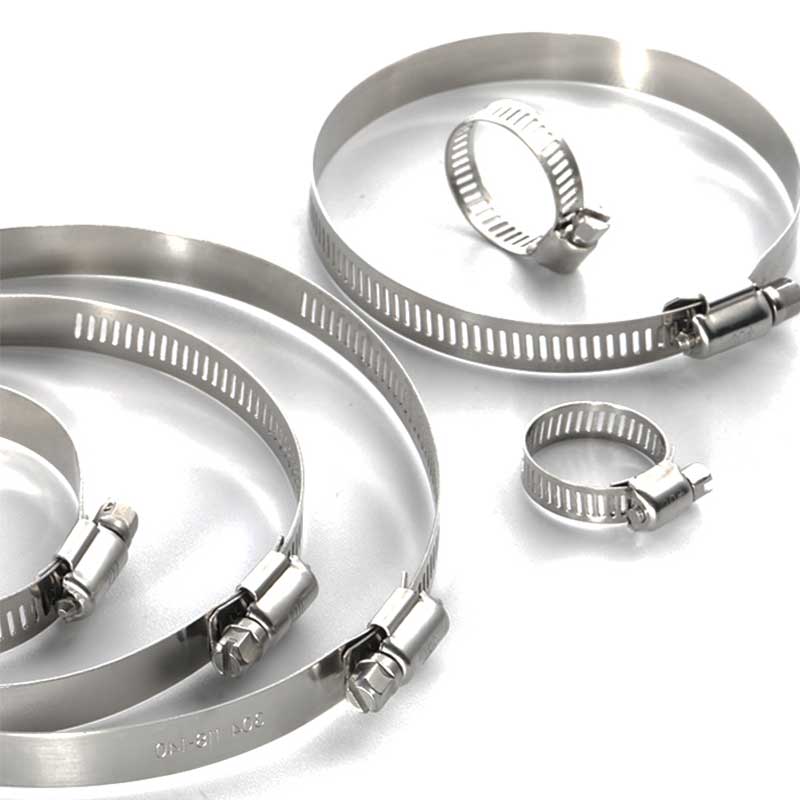

American type worm drive hose clamps feature a perforated metal band and screw-tightening mechanism, providing adjustable clamping for hoses, pipes and fittings. Available in stainless steel material options with multiple diameter ranges, they are suitable for automotive, industrial, irrigation and general hose-connection applications.
The screw engages with the perforated band to adjust the clamp diameter and apply clamping pressure around the hose connection.
Key benefits include:
Material options include SS201, SS304 and SS316, depending on application and customization requirements. The band, housing and screw materials can be specified separately to meet different corrosion-resistance and cost requirements.
Automotive: Radiator hoses, heater hoses and general vehicle maintenance.
Irrigation & Water Pumps: Water hoses, pumps and agricultural equipment connections.
Industrial Equipment: Flexible hoses, machinery and general pipe connections.
HVAC & Ventilation: Suitable flexible duct and equipment hose connections.
Marine & Outdoor: Moisture-exposed applications requiring appropriate stainless steel materials.

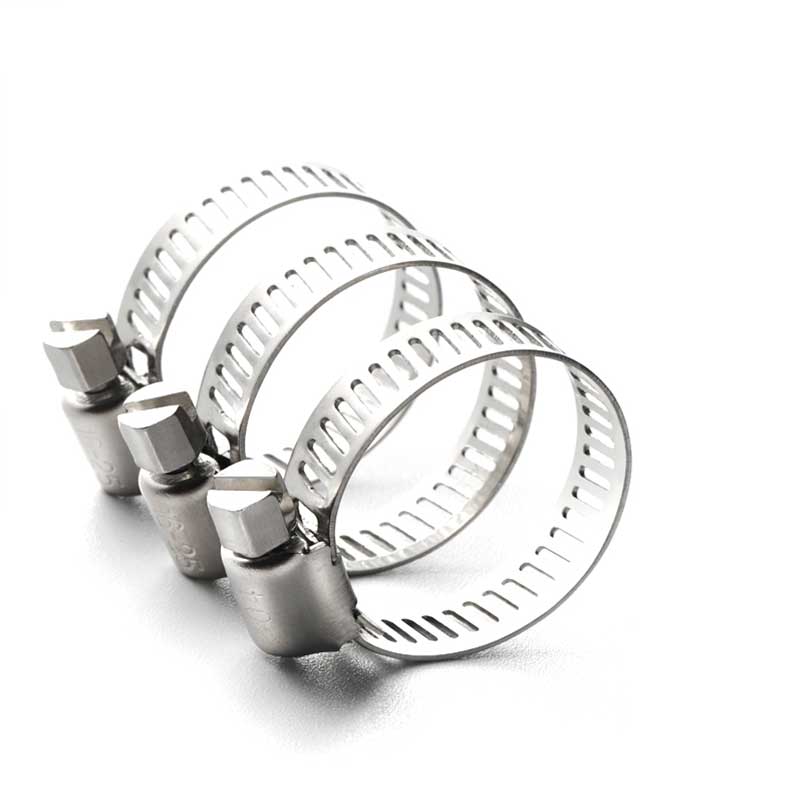

Standard product ranges include 8 mm mini clamps and 12.7 mm wide American type clamps, with various adjustable diameter ranges. Different steel grades, band dimensions, screw types and packaging options can be customized according to order requirements.
Other hose clamp designs are available upon request.
Measure the outside diameter of the hose after it is fitted onto the connector, and select a clamp whose adjustment range covers that diameter.
Correct sizing and tightening are important for reliable connections. Excessive torque may damage the hose or clamp.
Request a quotation: Please provide the hose outside diameter, application, material requirements, band width and quantity.
| Item No. | Width(W) | Thickness(T) | Min.Bundle Dia. (E1) | Max.Bundle Dia. (E2) | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | |
| NLHCA-0812S | 8 | 0.31 | 0.6 | 0.024 | 8 | 0.31 | 12 | 0.47 |
| NLHCA-1016S | 8 | 0.31 | 0.6 | 0.024 | 10 | 0.39 | 16 | 0.63 |
| NLHCA-1319S | 8 | 0.31 | 0.6 | 0.024 | 13 | 0.51 | 19 | 0.75 |
| NLHCA-1023S | 8 | 0.31 | 0.6 | 0.024 | 10 | 0.39 | 23 | 0.91 |
| NLHCA-1125S | 8 | 0.31 | 0.6 | 0.024 | 11 | 0.43 | 25 | 0.98 |
| NLHCA-1022 | 12.7 | 0.5 | 0.7 | 0.028 | 10 | 0.39 | 22 | 0.87 |
| NLHCA-1125 | 12.7 | 0.5 | 0.7 | 0.028 | 11 | 0.43 | 25 | 0.98 |
| NLHCA-1427 | 12.7 | 0.5 | 0.7 | 0.028 | 14 | 0.55 | 27 | 1.06 |
| NLHCA-1832 | 12.7 | 0.5 | 0.7 | 0.028 | 18 | 0.71 | 32 | 1.26 |
| NLHCA-2138 | 12.7 | 0.5 | 0.7 | 0.028 | 21 | 0.83 | 38 | 1.5 |
| NLHCA-2544 | 12.7 | 0.5 | 0.7 | 0.028 | 25 | 0.98 | 44 | 1.73 |
| NLHCA-3551 | 12.7 | 0.5 | 0.7 | 0.028 | 35 | 1.38 | 51 | 2.01 |
| NLHCA-3857 | 12.7 | 0.5 | 0.7 | 0.028 | 38 | 1.5 | 57 | 2.24 |
| NLHCA-4064 | 12.7 | 0.5 | 0.7 | 0.028 | 40 | 1.57 | 64 | 2.52 |
| NLHCA-4670 | 12.7 | 0.5 | 0.7 | 0.028 | 46 | 1.81 | 70 | 2.76 |
| NLHCA-5276 | 12.7 | 0.5 | 0.7 | 0.028 | 52 | 2.05 | 76 | 2.99 |
| NLHCA-5982 | 12.7 | 0.5 | 0.7 | 0.028 | 59 | 2.32 | 82 | 3.23 |
| NLHCA-6589 | 12.7 | 0.5 | 0.7 | 0.028 | 65 | 2.56 | 89 | 3.5 |
| NLHCA-7692 | 12.7 | 0.5 | 0.7 | 0.028 | 76 | 2.99 | 92 | 3.62 |
| NLHCA-78101 | 12.7 | 0.5 | 0.7 | 0.028 | 78 | 3.07 | 101 | 3.98 |
| NLHCA-84108 | 12.7 | 0.5 | 0.7 | 0.028 | 84 | 3.31 | 108 | 4.25 |
| NLHCA-91114 | 12.7 | 0.5 | 0.7 | 0.028 | 91 | 3.58 | 114 | 4.49 |
| NLHCA-105127 | 12.7 | 0.5 | 0.7 | 0.028 | 105 | 4.13 | 127 | 5 |
| NLHCA-118140 | 12.7 | 0.5 | 0.7 | 0.028 | 118 | 4.65 | 140 | 5.51 |
| NLHCA-130152 | 12.7 | 0.5 | 0.7 | 0.028 | 130 | 5.12 | 152 | 5.98 |
| NLHCA-143165 | 12.7 | 0.5 | 0.7 | 0.028 | 143 | 5.63 | 165 | 6.5 |
| NLHCA-155178 | 12.7 | 0.5 | 0.7 | 0.028 | 155 | 6.1 | 178 | 7.01 |
An American type worm drive hose clamp uses a perforated band and screw mechanism to adjust the clamp diameter and secure a hose around a fitting.
Measure the hose outside diameter after installation on the fitting. Select a clamp with an adjustment range that includes this diameter.
SS316 generally provides better corrosion resistance in chloride-exposed environments. Confirm the materials of the band, housing and screw separately.
They can generally be loosened and readjusted if the screw, housing and band remain undamaged. Replace damaged or distorted clamps.
Yes. Material combinations, band dimensions, screw options, packaging and other clamp designs can be discussed according to project requirements.
