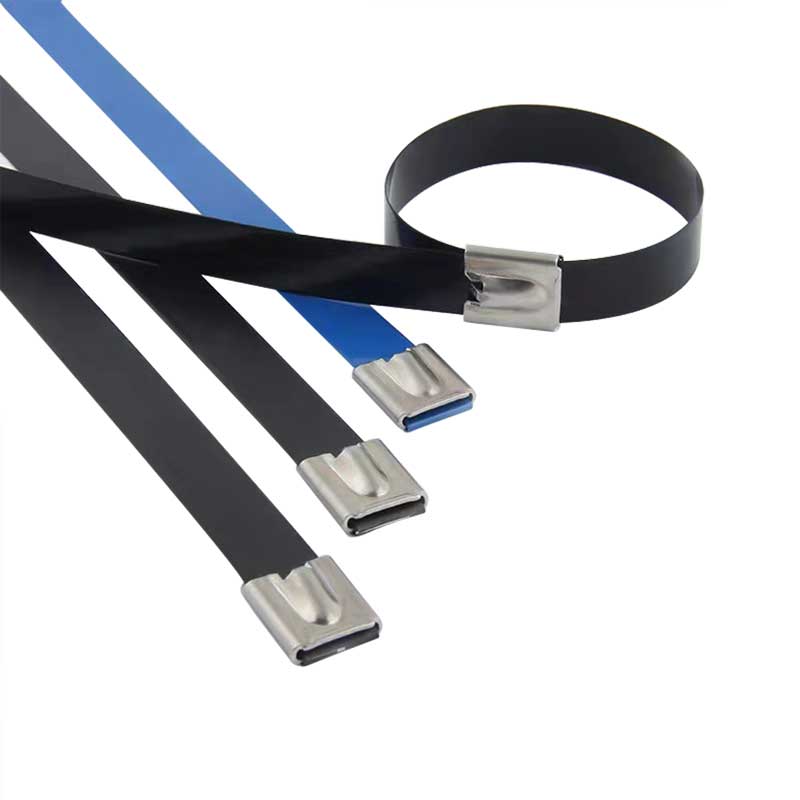

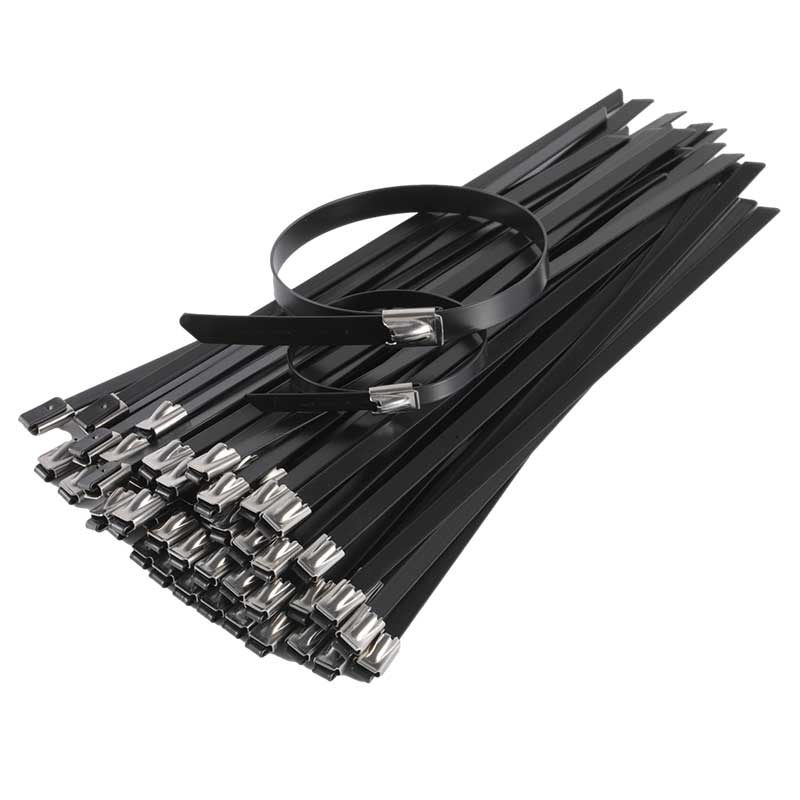

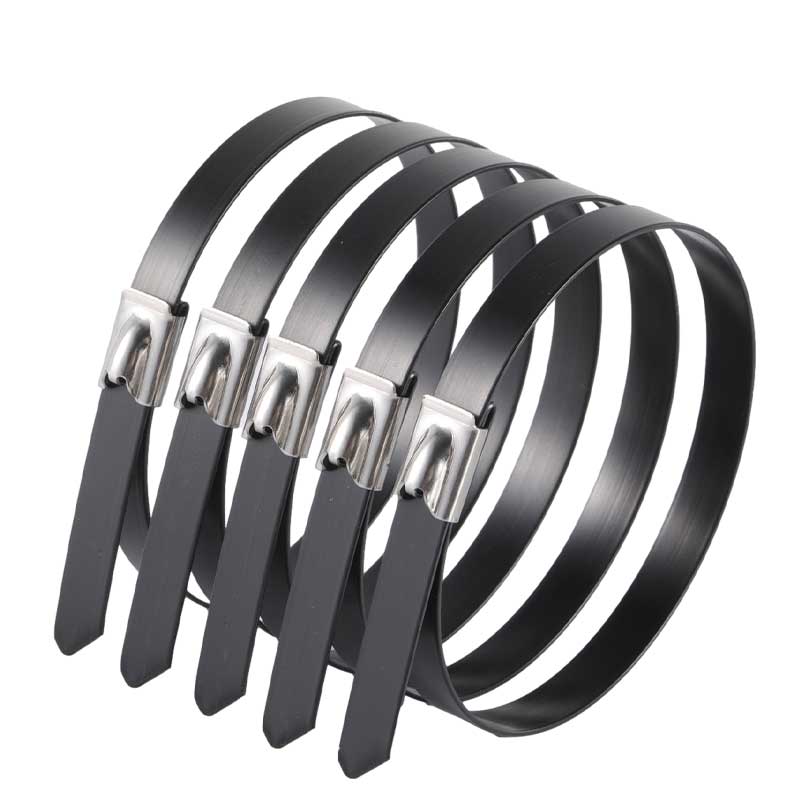

Epoxy Coated Steel Ties

1.Material: Stainless Steel 201/304/316.
2.Coating: Epoxy. For standard type, only the tie is coated; the buckel also can be coated as request.
2.Features: Ball-lock, Epoxy coated can provide additional edges protection, anti-corrosion, UV-resistant, halogen free,non toxic. All width and length can be customized as request.
3.Working temperature: -80℃ to 150℃.
4.Color: Black, other colors can be customized as request.
5.Certificates: CE, RoHS.

Get A Quote

Product Details
Get A Quote
Related Products

Epoxy Coated Stainless Steel Cable Ties for Cable Protection & Industrial Fastening

Epoxy coated stainless steel cable ties combine metal fastening strength with an additional protective coating. Designed for cable bundling, pipe fastening and industrial installations where abrasion, corrosion and metal-to-metal contact are concerns.

Available in SS201, SS304 and SS316, with a self-locking ball-lock head, multiple sizes and custom coating colors.

Extra Protection with Epoxy Coating

The epoxy-coated strap provides several advantages over uncoated stainless steel ties:

Cable Protection: Covered strap edges help reduce abrasion against cable insulation and hoses.
Additional Corrosion Barrier: The coating helps reduce direct exposure of covered metal surfaces to moisture and contaminants.
Reduced Metal Contact: Helps separate dissimilar metals where the coating remains intact.
Smoother Handling: Improves handling comfort during installation.
Custom Appearance: Black and customized colors support visual identification and equipment matching.

Self-Locking Design & Coating Options

The integrated ball-lock mechanism provides fast, secure, non-releasable fastening without separate buckles. Standard construction: Epoxy-coated strap with an uncoated stainless steel locking head. Customized construction: Coated locking heads can be supplied upon request, subject to locking-performance verification.

Black is the standard color. Other colors are available for project identification, equipment matching and customized product requirements.

Typical Applications

Marine & Coastal: Cable fastening where additional surface protection is required.
Industrial Machinery: Reduced cable abrasion during vibration and equipment operation.
Chemical Plants: Cable and pipe fastening with application-appropriate coating protection.
Electrical Installations: Cable bundling where direct metal contact is undesirable.
Solar & Outdoor Equipment: Cable management using a coating qualified for the required weather exposure.
Stage & Exhibition: Black low-reflection fastening and customized visual identification.

Material, Sizes & Performance

Available stainless steel grades include 201, 304 and 316, with strap widths from 4.6 to 19 mm and lengths from 100 to 1100 mm (other length can be produced upon request).

Working temperature, coating thickness and minimum loop tensile strength depend on the selected product specification.

For consistent installation, use a compatible stainless steel cable tie tensioning and cutting tool.

Custom Supply & Samples

Custom colors, coating coverage, dimensions and packaging are available according to order requirements.

Item No.	Width(W)		Length(L)		Thickness(T)		Max.Bundle Dia. (E)		Min.loop tensile strength
Item No.	mm	inch	mm	inch	mm	inch	mm	inch	LBS	KGS
NLSE-4.6×100	4.6	0.18	100	3.94	0.35	0.014	25	0.98	200	90
NLSE-4.6×150	4.6	0.18	150	5.91	0.35	0.014	37	1.46	200	90
NLSE-4.6×200	4.6	0.18	200	7.87	0.35	0.014	50	1.97	200	90
NLSE-4.6×250	4.6	0.18	250	9.84	0.35	0.014	63	2.48	200	90
NLSE-4.6×300	4.6	0.18	300	11.81	0.35	0.014	76	2.99	200	90
NLSE-4.6×350	4.6	0.18	350	13.78	0.35	0.014	89	3.5	200	90
NLSE-4.6×400	4.6	0.18	400	15.75	0.35	0.014	102	4.02	200	90
NLSE-4.6×500	4.6	0.18	500	19.69	0.35	0.014	128	5.04	200	90
NLSE-4.6×600	4.6	0.18	600	23.62	0.35	0.014	154	6.06	200	90
NLSE-4.6×700	4.6	0.18	700	27.56	0.35	0.014	179	7.05	200	90
NLSE-4.6×800	4.6	0.18	800	31.5	0.35	0.014	193	7.6	200	90
NLSE-4.6×900	4.6	0.18	900	35.43	0.35	0.014	200	7.87	200	90
NLSE-4.6×1000	4.6	0.18	1000	39.37	0.35	0.014	206	8.11	200	90
NLSE-7.9×150	7.9	0.31	150	5.91	0.35	0.014	37	1.46	270	120
NLSE-7.9×200	7.9	0.31	200	7.87	0.35	0.014	50	1.97	270	120
NLSE-7.9×250	7.9	0.31	250	9.84	0.35	0.014	63	2.48	270	120
NLSE-7.9×300	7.9	0.31	300	11.81	0.35	0.014	76	2.99	270	120
NLSE-7.9×350	7.9	0.31	350	13.78	0.35	0.014	89	3.5	270	120
NLSE-7.9×400	7.9	0.31	400	15.75	0.35	0.014	102	4.02	270	120
NLSE-7.9×500	7.9	0.31	500	19.69	0.35	0.014	128	5.04	270	120
NLSE-7.9×600	7.9	0.31	600	23.62	0.35	0.014	154	6.06	270	120
NLSE-7.9×800	7.9	0.31	800	31.5	0.35	0.014	193	7.6	270	120
NLSE-7.9×1000	7.9	0.31	1000	39.37	0.35	0.014	206	8.11	270	120
NLSE-10×300	10	0.39	300	11.81	0.35	0.014	76	2.99	390	170
NLSE-10×400	10	0.39	400	15.75	0.35	0.014	102	4.02	390	170
NLSE-10×500	10	0.39	500	19.69	0.35	0.014	128	5.04	390	170
NLSE-10×600	10	0.39	600	23.62	0.35	0.014	154	6.06	390	170
NLSE-10×800	10	0.39	800	31.5	0.35	0.014	193	7.6	390	170
NLSE-10×1000	10	0.39	1000	39.37	0.35	0.014	206	8.11	390	170
NLSE-12×350	12	0.47	350	13.78	0.45	0.018	78	3.07	500	220
NLSE-12×500	12	0.47	500	19.69	0.45	0.018	128	5.04	500	220
NLSE-12×900	12	0.47	900	35.43	0.45	0.018	228	8.98	500	220
NLSE-12×1100	12	0.47	1100	43.31	0.45	0.018	278	10.94	500	220
NLSE-15×350	15	0.59	350	13.78	0.45	0.018	78	3.07	770	340
NLSE-15×600	15	0.59	600	23.62	0.45	0.018	148	5.83	770	340
NLSE-15×1100	15	0.59	1100	43.31	0.45	0.018	272	10.71	770	340

Frequently Asked Questions

1. Why choose epoxy coated stainless steel cable ties?

The coating provides additional protection against cable abrasion, direct metal contact and environmental exposure, while the stainless steel strap provides mechanical strength.

2. Is the locking head also coated?

The standard model has an epoxy-coated strap and an uncoated stainless steel locking head. Coated heads are available upon request.

3. Can I order custom colors?

Yes. Black is standard, and other colors can be customized for cable identification, equipment matching or project requirements.

4. Are epoxy coated steel ties suitable for outdoor use?

They can be used outdoors when the selected coating has suitable UV and weathering performance. Long-term sunlight exposure should be evaluated according to the coating specification.

5. What is the difference between 304 and 316 coated cable ties?

Both grades provide corrosion resistance, while SS316 generally offers better resistance in marine and chloride-exposed environments. The coating provides additional surface protection.
