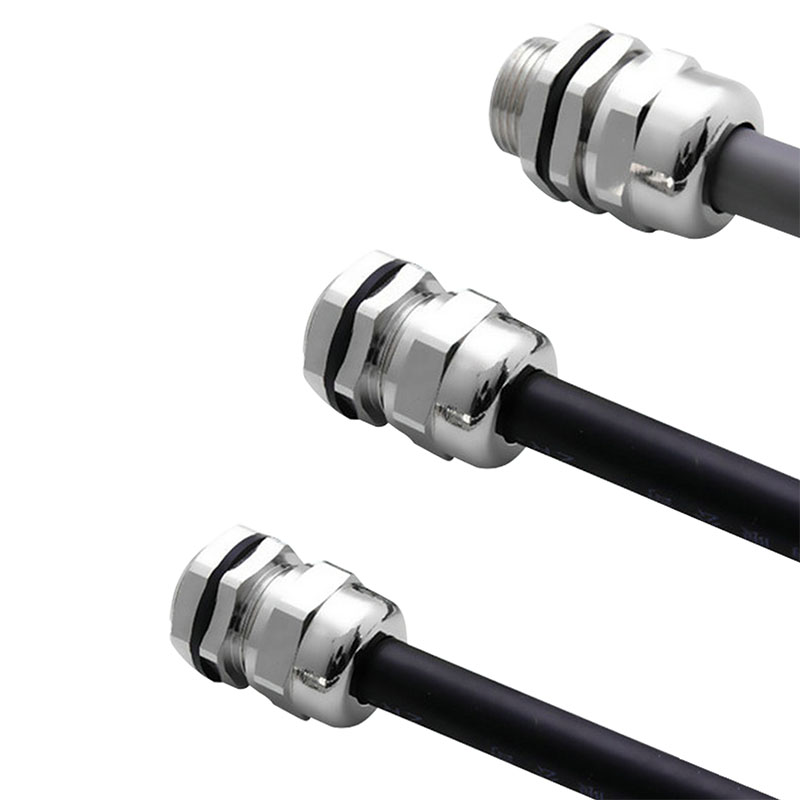

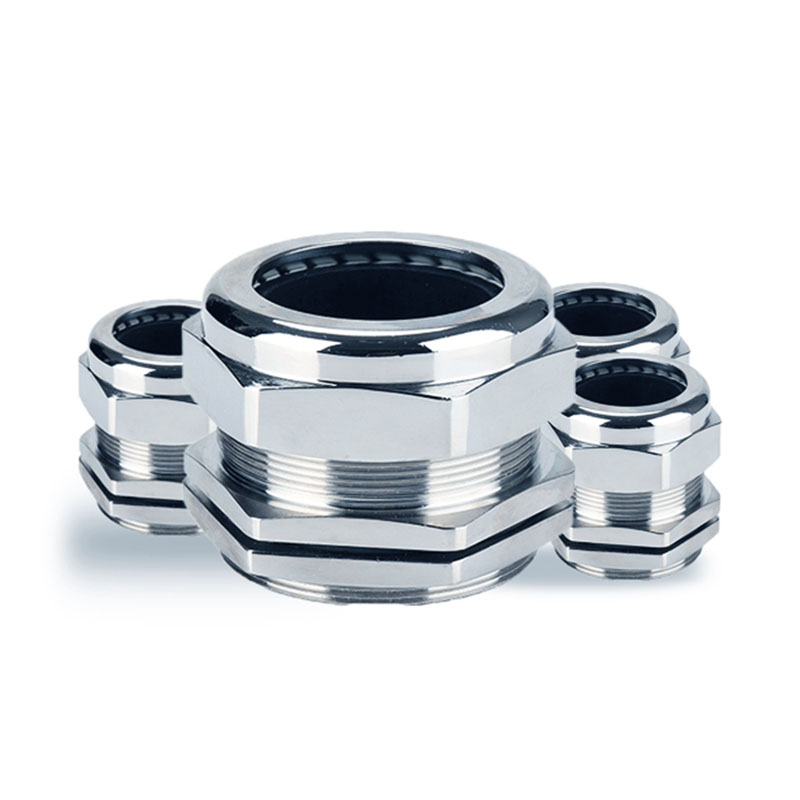

1.Material: Body and nut are made of 304 Stainless Steel, Anti-release buckle is made of Nylon, seal ring is made of NBR.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature：-40℃ to 100℃.
6.Color: Silver.
7.Certificates: CE, RoHS, SGS
| Item No. | Suitable cable range | Thread Length(C2) | Thread Dia.(C1) | Spanner Size | |||
| mm | inch | mm | inch | mm | inch | mm | |
| PG7 | 3-6.5 | 0.12-0.25 | 7 | 0.28 | 12.5 | 0.49 | 14 |
| PG9 | 4-8 | 0.16-0.31 | 8 | 0.31 | 15.2 | 0.6 | 18 |
| PG11 | 5-10 | 0.2-0.39 | 8 | 0.31 | 18.6 | 0.73 | 20 |
| PG13.5 | 6-12 | 0.24-0.47 | 8 | 0.31 | 20.4 | 0.8 | 22 |
| PG16 | 10-14 | 0.4-0.55 | 8 | 0.31 | 22.5 | 0.89 | 24 |
| PG19 | 12-16 | 0.47-0.63 | 9 | 0.35 | 24 | 0.94 | 27 |
| PG21 | 13-18 | 0.51-0.71 | 9 | 0.35 | 28.3 | 1.11 | 30 |
| PG25 | 16-20 | 0.63-0.79 | 10 | 0.39 | 30 | 1.18 | 35 |
| PG29 | 18-25 | 0.71-0.98 | 10 | 0.39 | 37 | 1.46 | 40 |
| PG36 | 25-32 | 0.98-1.26 | 12 | 0.47 | 47 | 1.85 | 50 |
| PG42 | 32-38 | 1.26-1.5 | 13 | 0.51 | 54 | 2.13 | 57 |
| PG48 | 37-44 | 1.46-1.73 | 14 | 0.55 | 59.3 | 2.33 | 65 |
| PG63 | 42-50 | 1.65-1.97 | 15 | 0.59 | 71 | 2.8 | 76 |
| M12x1.5 | 3-6.5 | 0.12-0.25 | 7 | 0.28 | 12 | 0.47 | 14 |
| M16x1.5 | 4-8 | 0.16-0.31 | 8 | 0.31 | 16 | 0.63 | 18 |
| M18x1.5 | 5-10 | 0.2-0.39 | 8 | 0.31 | 18 | 0.71 | 20 |
| M20x1.5 | 6-12 | 0.24-0.47 | 8 | 0.31 | 20 | 0.79 | 22 |
| M22x1.5 | 10-14 | 0.4-0.55 | 8 | 0.31 | 22 | 0.87 | 24 |
| M24x1.5 | 12-16 | 0.47-0.63 | 9 | 0.35 | 24 | 0.94 | 27 |
| M25x1.5 | 13-18 | 0.51-0.71 | 9 | 0.35 | 25 | 0.98 | 27 |
| M32x1.5 | 16-20 | 0.63-0.79 | 10 | 0.39 | 32 | 1.26 | 35 |
| M36x1.5 | 18-25 | 0.71-0.98 | 10 | 0.39 | 36 | 1.42 | 40 |
| M47x1.5 | 25-32 | 0.98-1.26 | 12 | 0.47 | 40 | 1.57 | 50 |
| M54x1.5 | 32-38 | 1.26-1.5 | 13 | 0.51 | 50 | 1.97 | 57 |
| M60x1.5 | 37-44 | 1.46-1.73 | 14 | 0.55 | 63 | 2.48 | 65 |
| M72x1.5 | 42-50 | 1.65-1.97 | 15 | 0.59 | 71 | 2.8 | 76 |
| G1/4 | 3-6.5 | 0.12-0.25 | 7 | 0.28 | 12 | 0.47 | 18 |
| G3/8 | 5-10 | 0.2-0.39 | 8 | 0.31 | 18 | 0.71 | 20 |
| G1/2 | 7-12 | 0.28-0.47 | 10 | 0.39 | 21 | 0.83 | 22 |
| G3/4 | 12-18 | 0.47-0.71 | 12 | 0.47 | 26.5 | 1.04 | 30 |
| G1 | 13-18 | 0.51-0.71 | 9 | 0.35 | 28.3 | 1.11 | 40 |
| G1-1/4 | 25-32 | 0.98-1.26 | 12 | 0.47 | 40 | 1.57 | 50 |
| G1-1/2 | 32-38 | 1.26-1.5 | 13 | 0.51 | 54 | 2.13 | 57 |
| G2-1/2 | 42-50 | 1.65-1.97 | 15 | 0.59 | 71 | 2.8 | 76 |
| NPT1/4 | 3-6.5 | 0.12-0.25 | 7 | 0.28 | 12 | 0.47 | 18 |
| NPT3/8 | 5-10 | 0.2-0.39 | 8 | 0.31 | 18 | 0.71 | 20 |
| NPT1/2 | 7-12 | 0.28-0.47 | 10 | 0.39 | 21 | 0.83 | 22 |
| NPT3/4 | 12-18 | 0.47-0.71 | 15 | 0.59 | 26.5 | 1.04 | 30 |
| NPT1 | 13-18 | 0.51-0.71 | 9 | 0.35 | 28.3 | 1.11 | 40 |
| NPT1-1/4 | 25-32 | 0.98-1.26 | 12 | 0.47 | 40 | 1.57 | 50 |
| NPT1-1/2 | 32-38 | 1.26-1.5 | 13 | 0.51 | 54 | 2.13 | 57 |
| NPT2-1/2 | 42-50 | 1.65-1.97 | 15 | 0.59 | 71 | 2.8 | 76 |
1.Material: Body and nut are made of brass with nikel plasted, Anti-release buckle is made of Nylon, seal ring is made of NBR.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature：-40℃ to 100℃.
6.Color: Silver.
7.Certificates: CE, RoHS, SGS
1.Material: Body and nut are made of 304 Stainless Steel, Anti-release buckle is made of Nylon, seal ring is made of NBR.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature：-40℃ to 100℃.
6.Color: Silver.
7.Certificates: CE, RoHS, SGS
1.Material: UL Approved Nylon PA66.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: Used to connect the corrugated conduit with other device boxes, Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature：-40℃ to 100℃.
6.Color: Black, other colors are available as requested.
7.Certificates: CE, RoHS, SGS
1.Material: Body and nut are made of UL Approved Nylon PA66, washer and seal are made of NBR.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: The clamping seal has multiple holes, which can be used for the connection of multiple cables, Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature：-40℃ to 100℃.
6.Color: Black, White-Grey, other colors are available as requested.
7.Certificates: CE, RoHS, SGS
