1.Material: Body and nut are made of UL Approved Nylon PA66, washer and seal are made of NBR.
2.Waterproof Rating: IP68.
3.Flammability: UL 94V-2.
4.Features: The clamping seal has multiple holes, which can be used for the connection of multiple cables, Anti-Acid, Anti-erosion, waterproof and dust-proof, not easy to get aging.
5.Working temperature: -40℃ to 100℃.
6.Color: Black, White-Grey, other colors are available as requested.
7.Certificates: CE, RoHS, SGS
8. Hole Configurations: 2 / 3 / 4 / 5 / 6 / 7 / 8

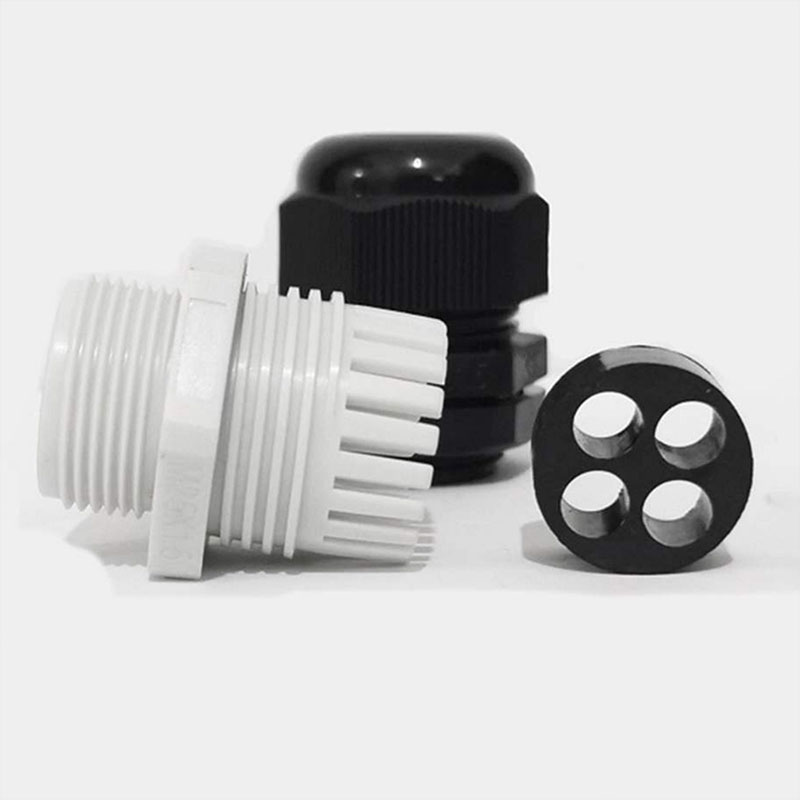

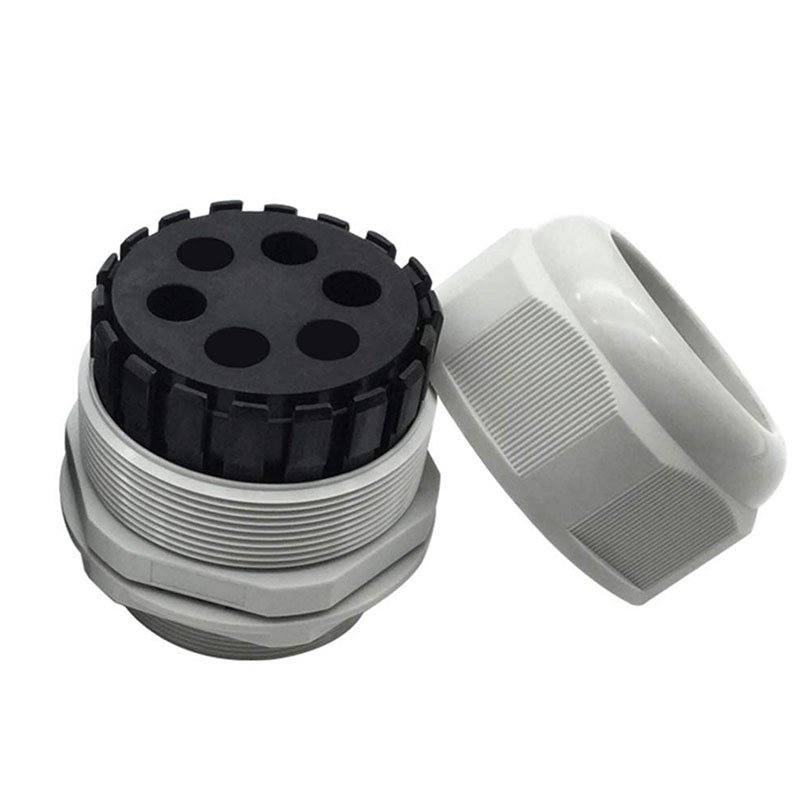

Multiple Cables. One Entry Point. Individual Cable Sealing. Multi-hole cable glands are designed to route several individual cables through a single enclosure opening, reducing the number of cable entry holes required in electrical boxes, control panels and compact industrial equipment.
Featuring a PA66 nylon body and an NBR multi-hole sealing insert, these cable glands provide an organized cable entry solution for installations with multiple small-diameter cables.
Unlike standard single-hole cable glands, multi-hole cable glands use a sealing insert with several separate cable passages.
Key advantages include:

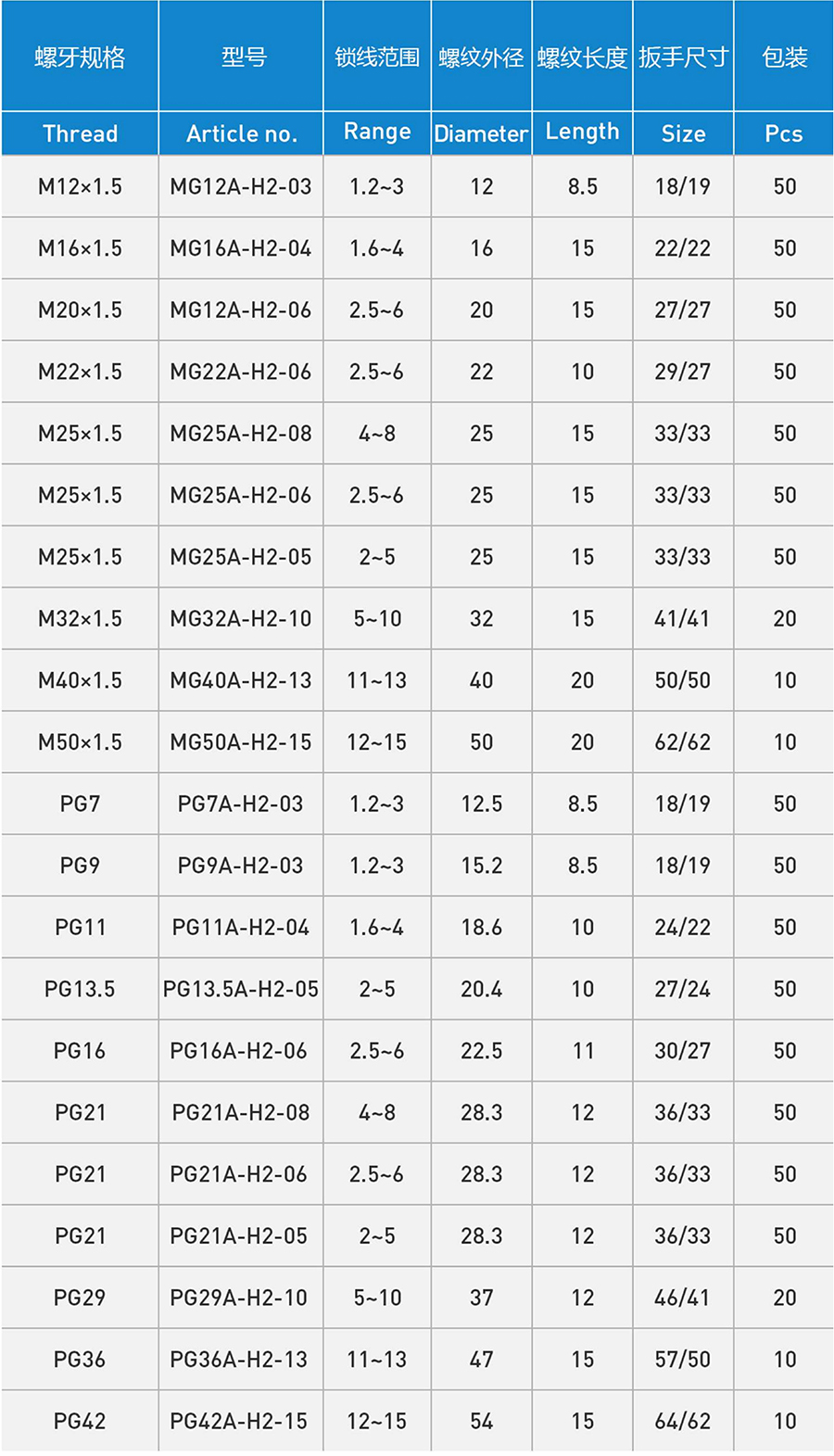

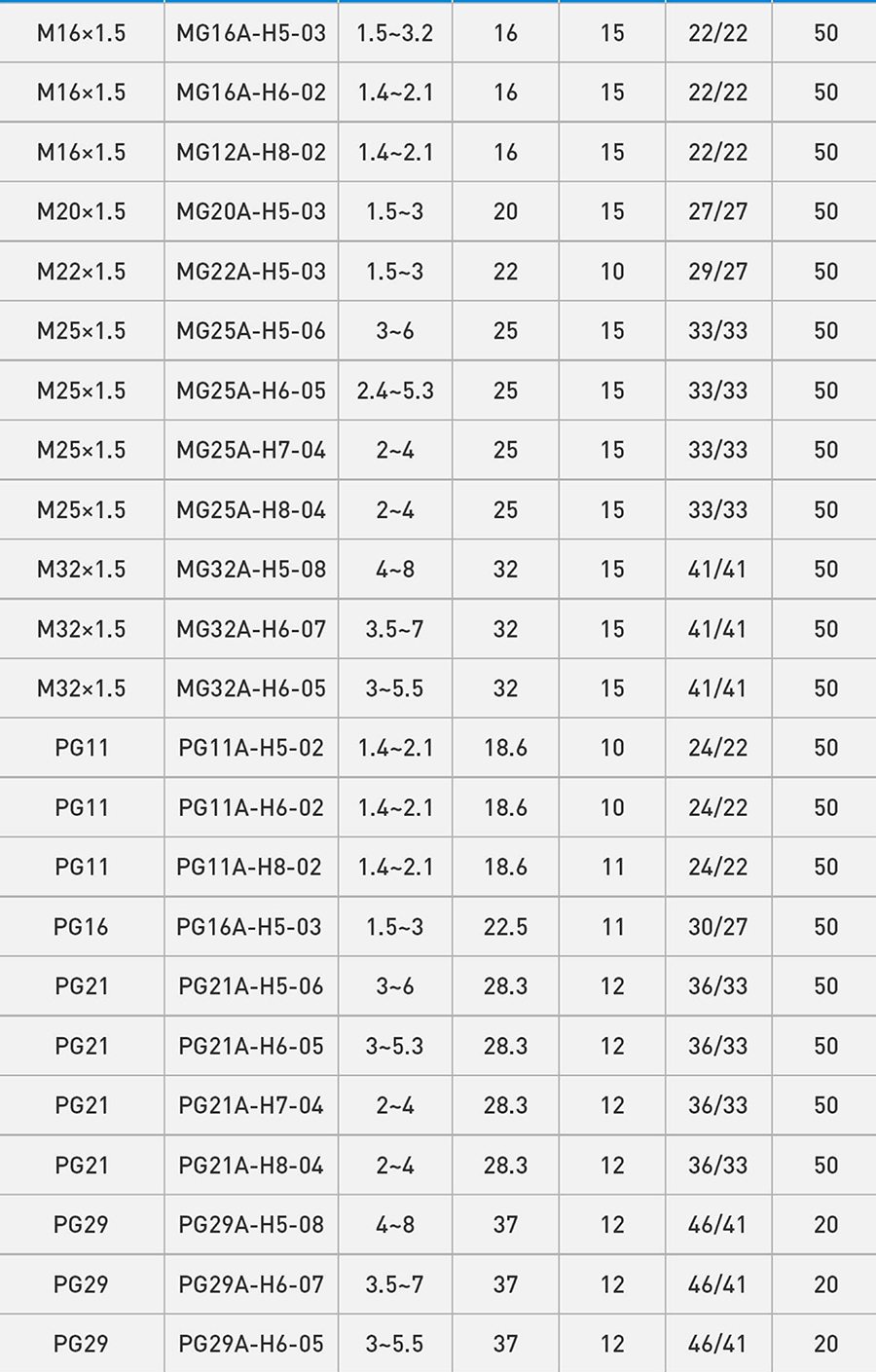

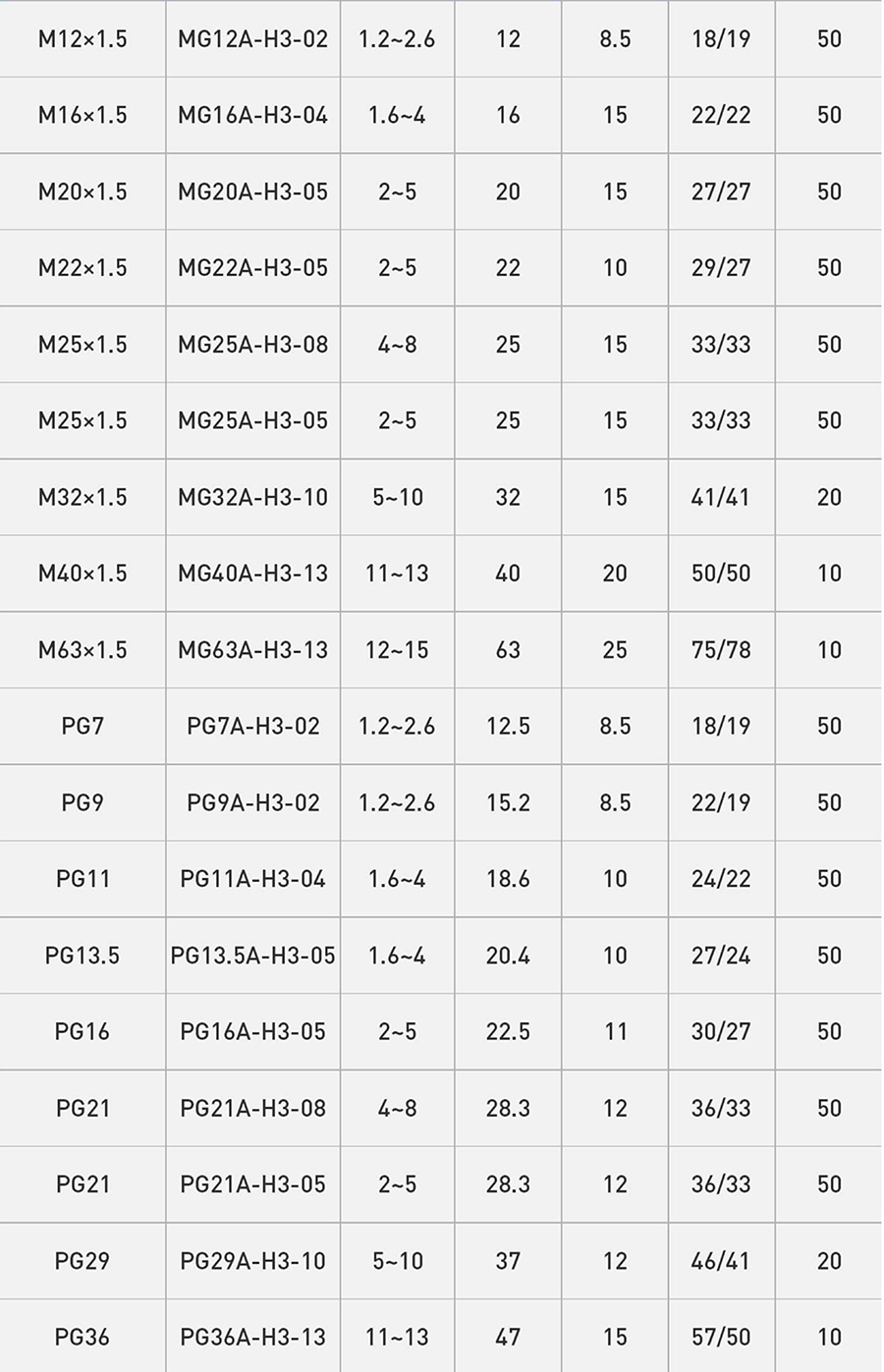

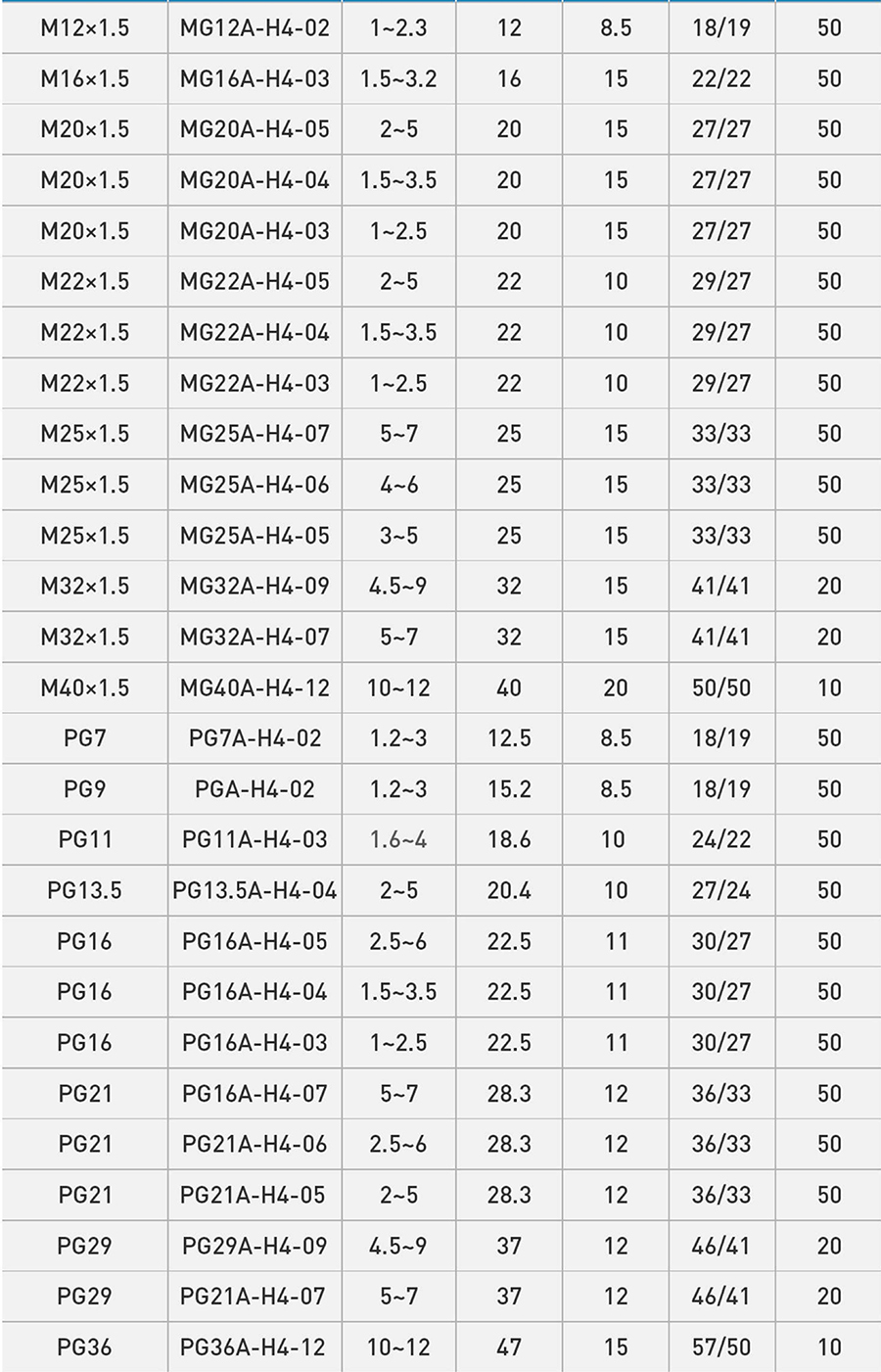

Available in 2–8 hole configurations, with different cable diameter ranges for individual passages.
Metric (M) and PG thread options support different equipment mounting interfaces.
Each cable should match the specified sealing hole diameter. Unused openings must be properly sealed to maintain the required ingress protection.
Select according to the number of cables, outside diameter of each cable, thread size and available enclosure mounting space.
For cables with different diameters, confirm a suitable multi-hole sealing configuration before ordering.
Request a Quote: Provide your cable quantity, cable outside diameters, required thread size and order quantity.
| Feature | Single-Hole Cable Gland | Multi-Hole Cable Gland |
|---|---|---|
| Number of Cables | Usually 1 | Multiple |
| Sealing Insert | One cable passage | Multiple separate passages |
| Enclosure Openings | One opening per gland | Several cables share one opening |
| Installation Space | More space for separate glands | Higher cable density |
| Cable Size Selection | One cable OD | Number of cables + each cable OD |
| Best Application | Individual cables | Compact multi-cable wiring |
| Main Advantage | Simple individual cable entry | Space-saving cable organization |
They allow several individual cables to enter an electrical enclosure through a single mounting hole. They are commonly used in sensor wiring, automation equipment and compact junction boxes.
Available models accommodate 2 to 8 individual cables, depending on the selected sealing insert and gland size.
This depends on the sealing insert design. Each cable must fit its specified hole diameter range. Special multi-hole configurations may be considered for different cable sizes.
The listed series features an IP68 sealing design. Actual protection requires correctly sized cables, properly sealed unused openings and suitable installation conditions.
Single-hole glands accommodate one cable per fitting, while multi-hole glands allow several cables to share one enclosure opening, helping reduce space requirements and the number of drilled holes.
