1.Terminal material: Tin plated Copper (Brass material also available as requested)
2.Features: Electricity safe, easy to install, anti-corrosion, various sizes and packages for chosen.
3.Certificates: CE, RoHS, SGS
4.Ring Terminal Wire Range: 0.5–400 mm² across available models
5.Fork Terminal Wire Range: 0.5–25 mm² across available models
Compact Design. Reliable Crimping. Flexible Insulation Options.

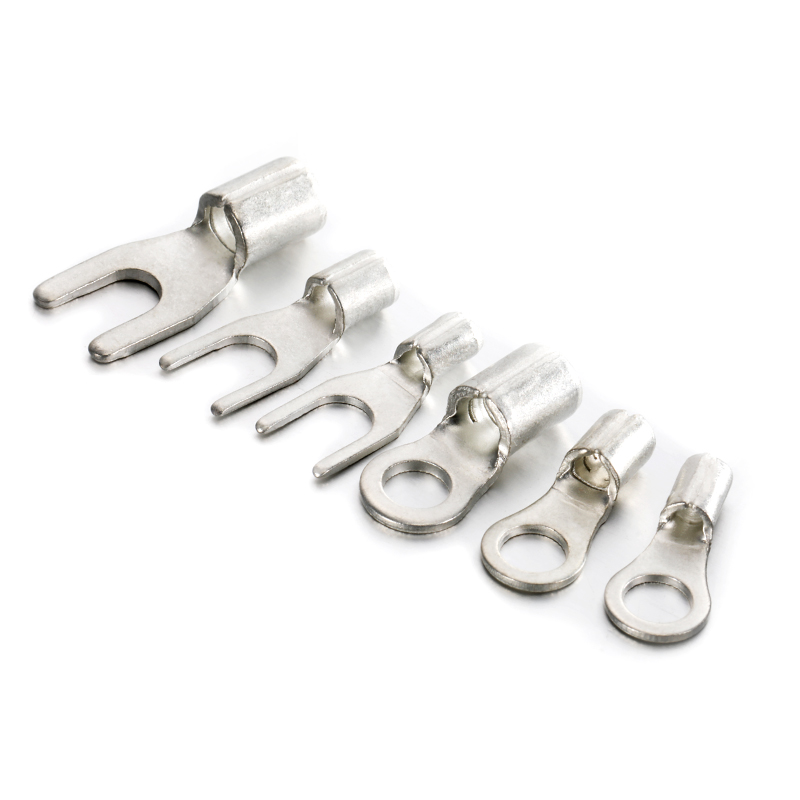

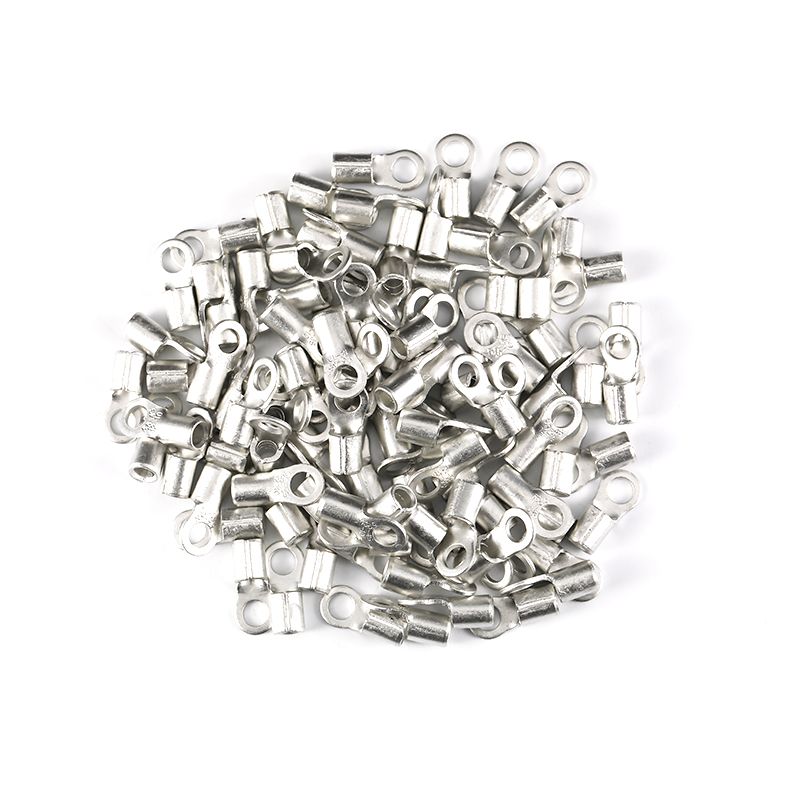

Non-insulated crimp terminals provide secure electrical connections without pre-attached insulation sleeves, making them suitable for compact wiring assemblies, control panels and equipment connections.
Manufactured from tin-plated copper, they are available in various wire sizes and stud hole dimensions, with ring and fork terminals as the main product types.
Without a plastic insulation sleeve, non-insulated terminals offer a smaller connection profile and easier access to the crimp barrel.
Key benefits include:

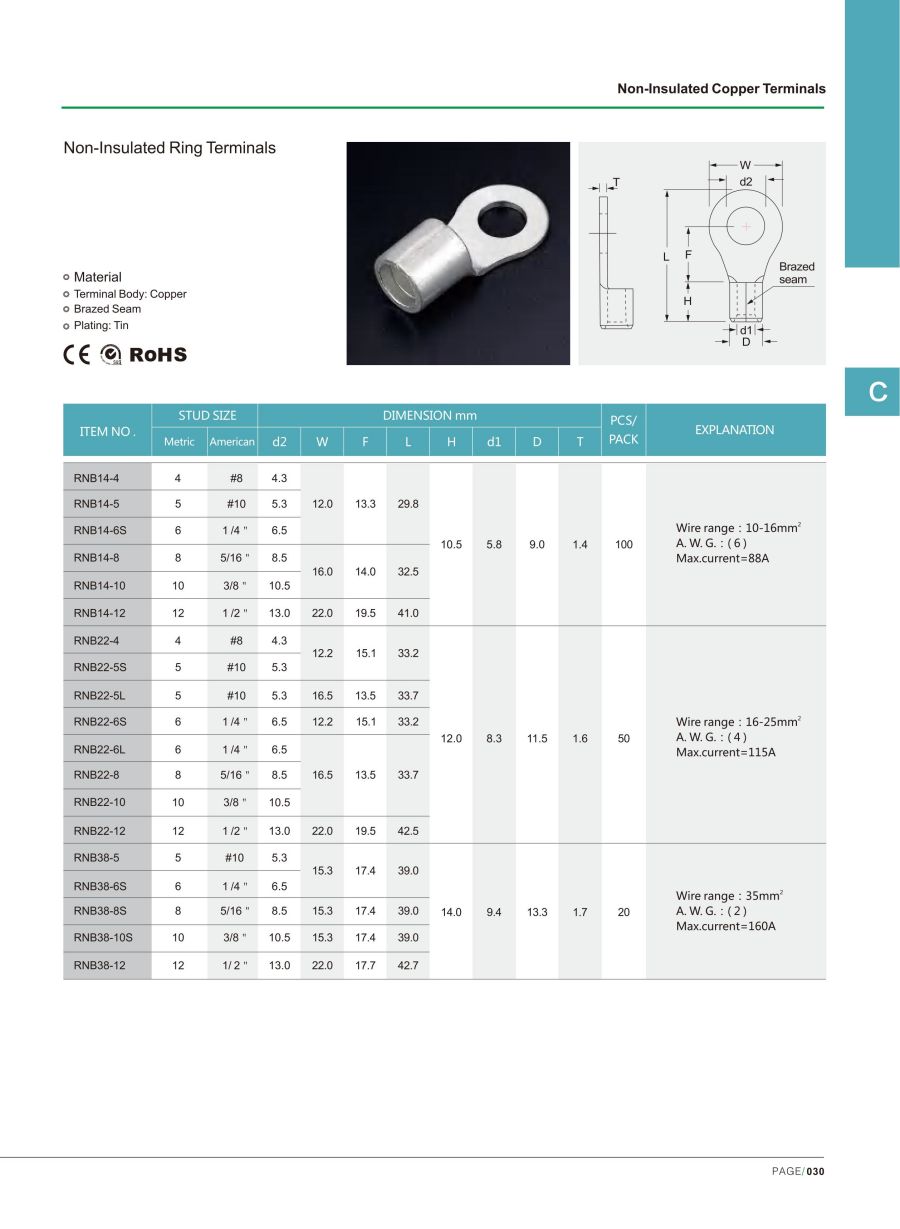

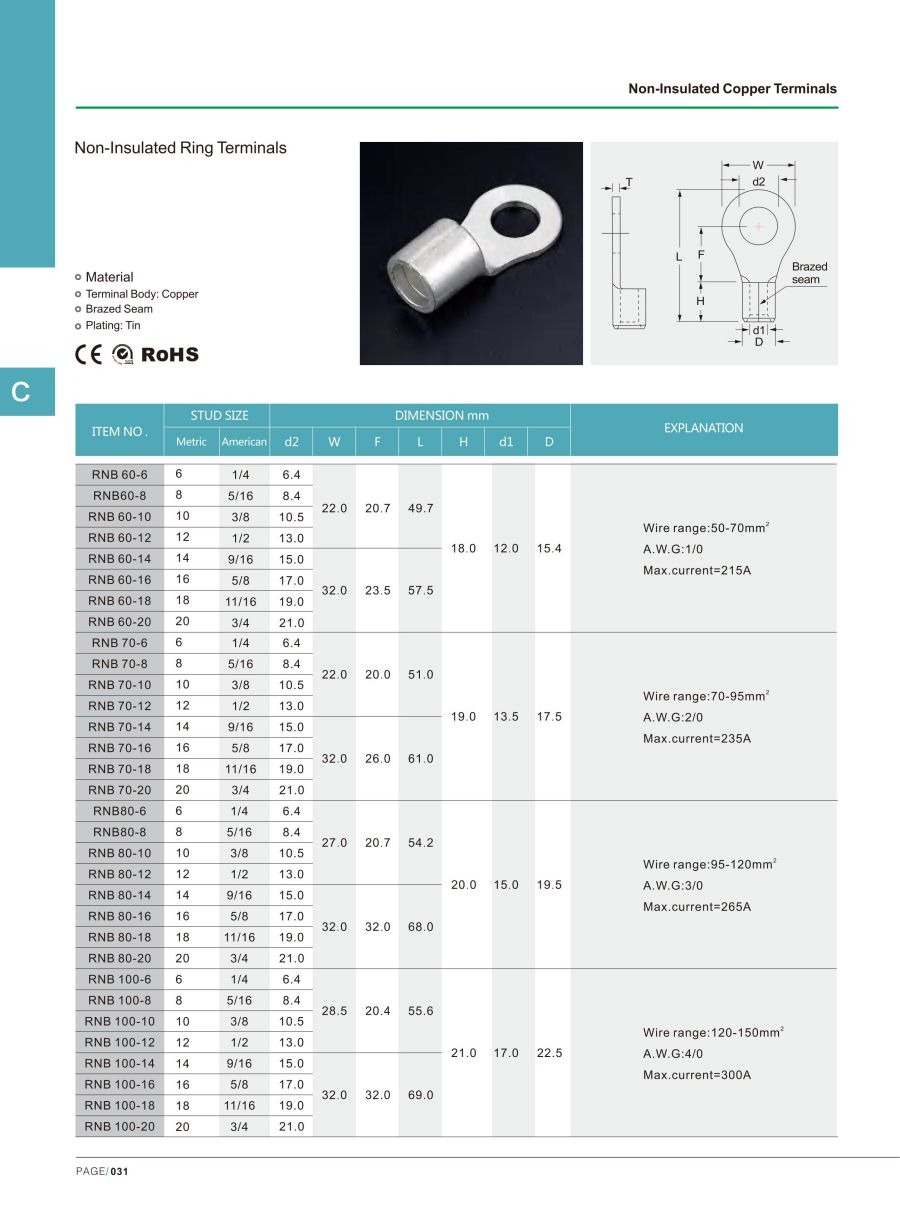

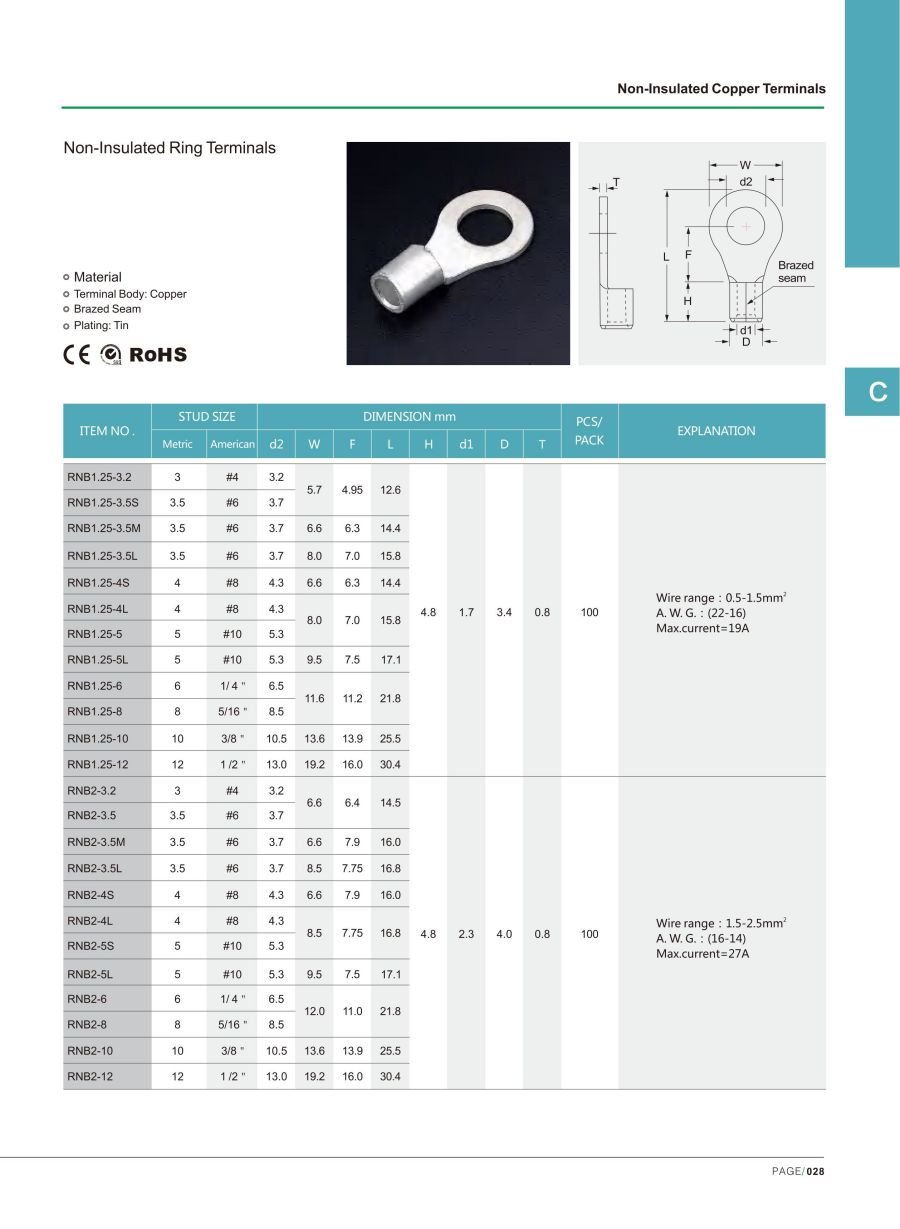

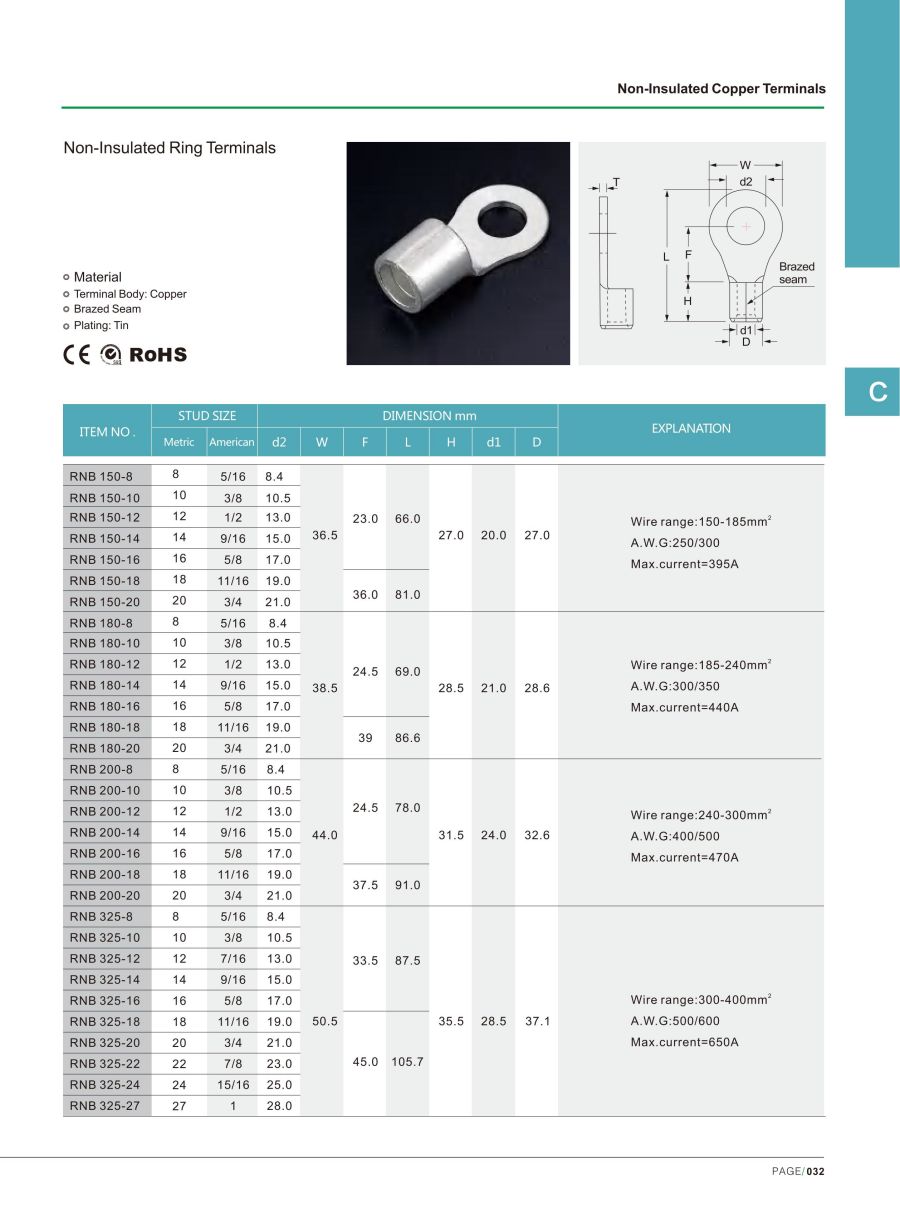

Non-Insulated Ring Terminals
The closed-ring tongue remains captured around the stud, helping prevent accidental disengagement. Suitable for equipment wiring, chassis connections and applications requiring secure stud retention.

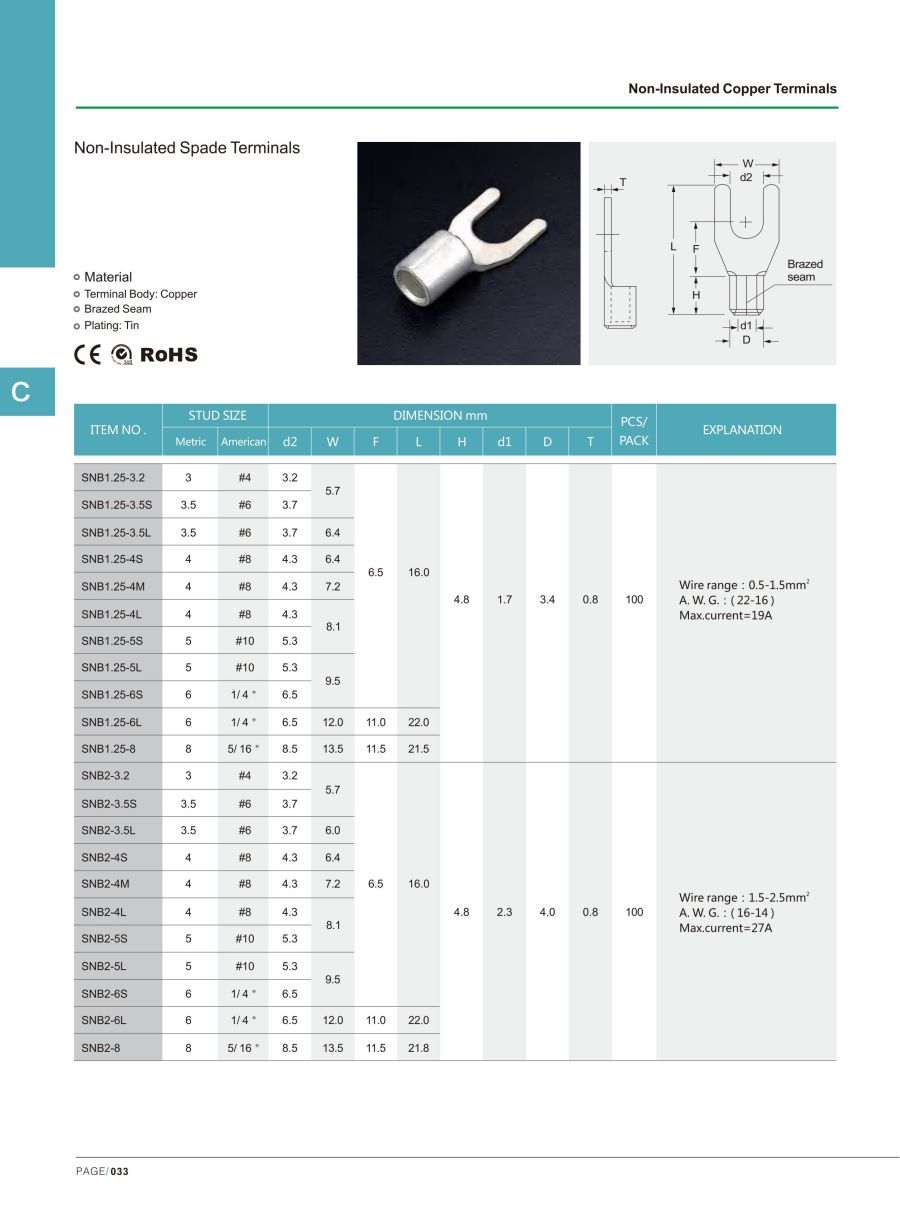

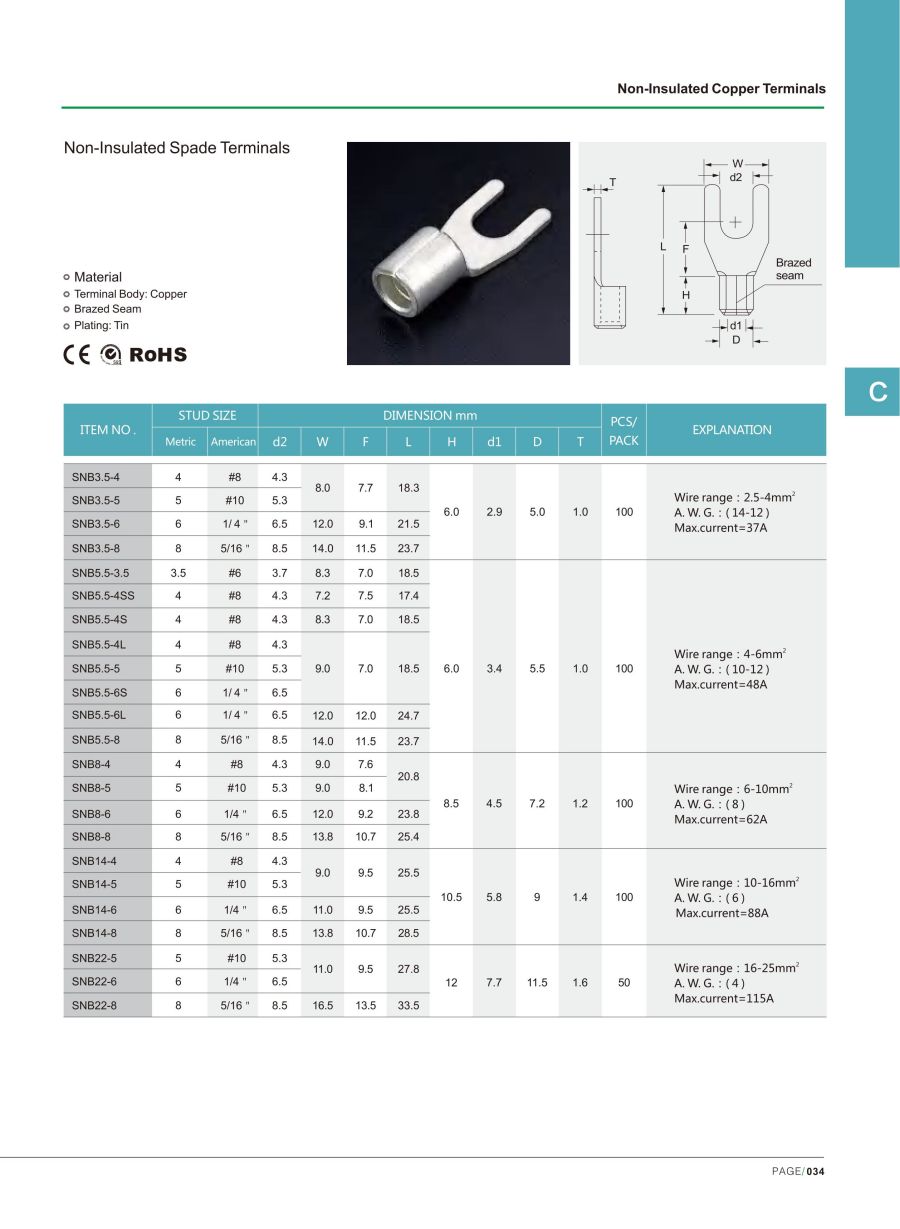

Non-Insulated Fork Terminals
The open U-shaped tongue allows installation and removal without completely removing the fastening screw. Ideal for control panels, equipment assembly and maintenance.

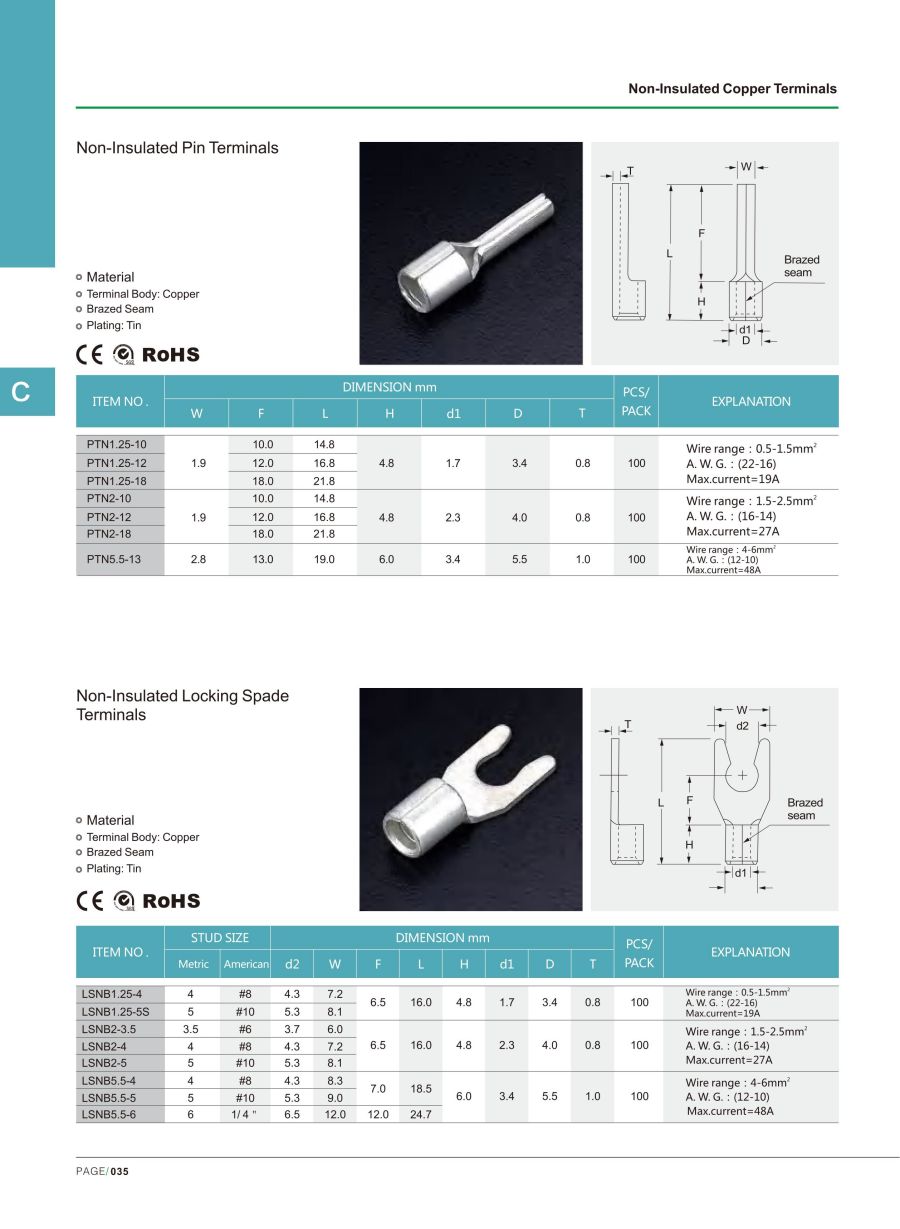

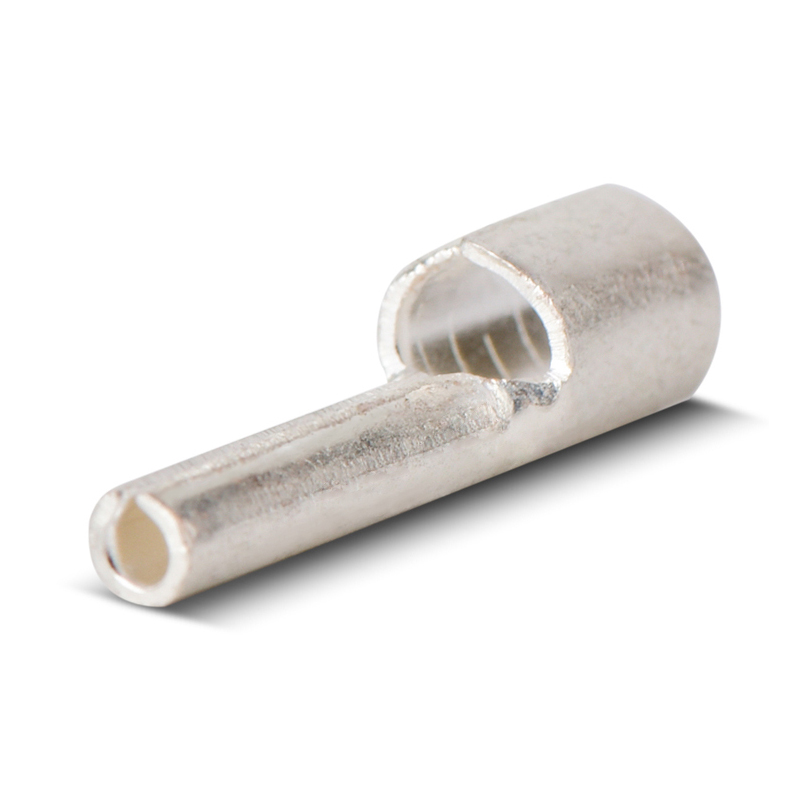

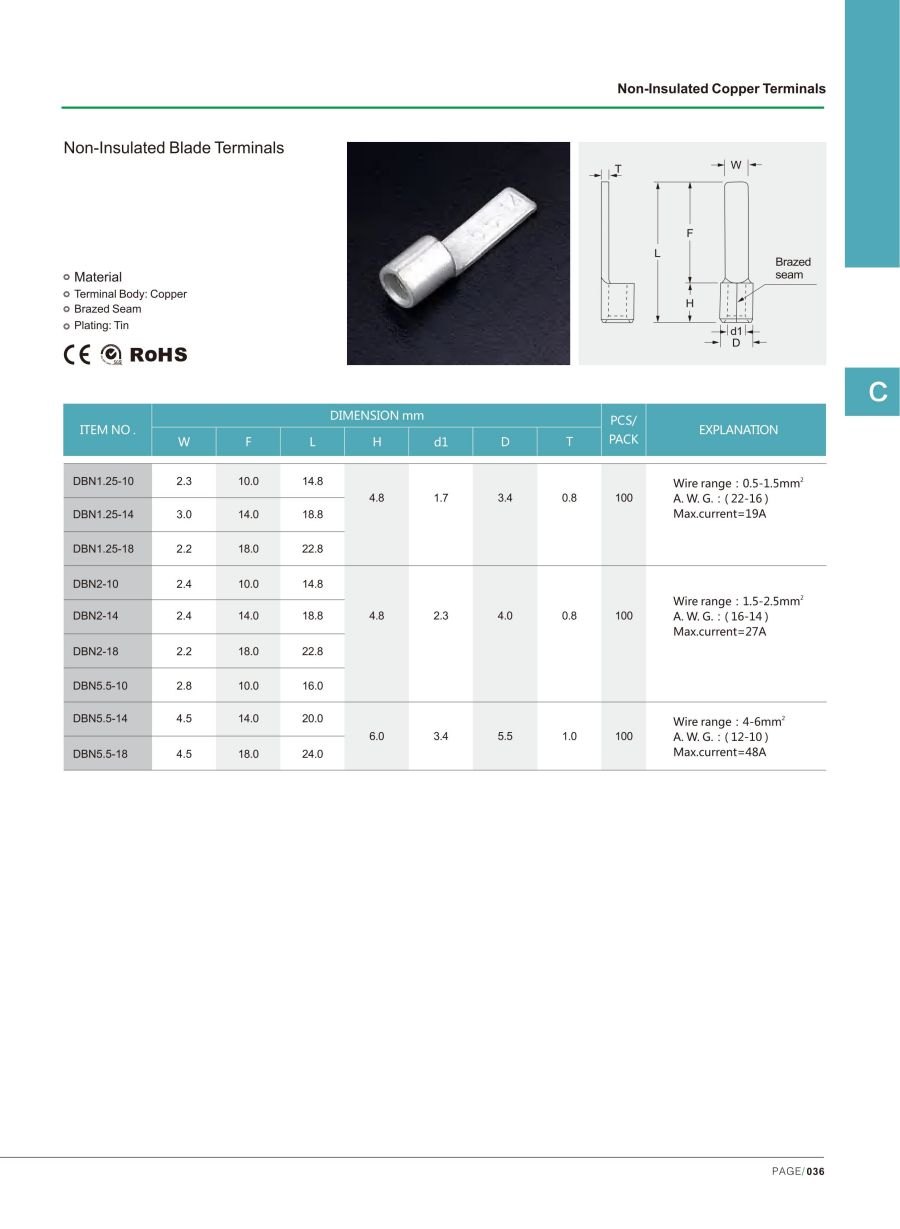

Non-insulated locking fork, pin and blade terminals are also available for different connection requirements.
Select according to wire cross-section, stud size, terminal dimensions, crimping tool and insulation requirements.
Use the appropriate crimping die and provide additional insulation or protection wherever required by the installation.
Request a Quote: Send your terminal type, wire size, stud size, quantity and packaging requirements.
| ITEM NO . | Wire size | Wire size | Stud size | Stud size | d2 | W | F | L | H | d1 | D | T |
| mm2 | AWG | Metric | American | mm | mm | mm | mm | mm | mm | mm | mm | |
| RNB1.25-3.2 | 0.5~1.5mm² | 22~16 | 3 | #4 | 3.2 | 5.7 | 4.95 | 12.6 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-3.5S | 0.5~1.5mm² | 22~16 | 3.5 | #6 | 3.7 | 5.7 | 4.95 | 12.6 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-3.5M | 0.5~1.5mm² | 22~16 | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 14.4 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-3.5L | 0.5~1.5mm² | 22~16 | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 15.8 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-4S | 0.5~1.5mm² | 22~16 | 4 | #8 | 4.3 | 6.6 | 6.3 | 14.4 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-4L | 0.5~1.5mm² | 22~16 | 4 | #8 | 4.3 | 8.0 | 7.0 | 15.8 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-5 | 0.5~1.5mm² | 22~16 | 5 | #10 | 5.3 | 8.0 | 7.0 | 15.8 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-5L | 0.5~1.5mm² | 22~16 | 5 | #10 | 5.3 | 9.5 | 7.5 | 17.1 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-6 | 0.5~1.5mm² | 22~16 | 6 | 1/4 “ | 6.5 | 11.6 | 11.2 | 21.8 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-8 | 0.5~1.5mm² | 22~16 | 8 | 5/16 “ | 8.5 | 11.6 | 11.2 | 21.8 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-10 | 0.5~1.5mm² | 22~16 | 10 | 3/8 “ | 10.5 | 13.6 | 13.9 | 25.5 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB1.25-12 | 0.5~1.5mm² | 22~16 | 12 | 1/2 “ | 13.0 | 19.2 | 16.0 | 30.4 | 4.8 | 1.7 | 3.4 | 0.8 |
| RNB2-3.2 | 1.5~2.5mm² | 16~14 | 3 | #4 | 3.2 | 6.6 | 6.4 | 14.5 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-3.5 | 1.5~2.5mm² | 16~14 | 3.5 | #6 | 3.7 | 6.6 | 6.4 | 14.5 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-3.5M | 1.5~2.5mm² | 16~14 | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-3.5L | 1.5~2.5mm² | 16~14 | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 16.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-4S | 1.5~2.5mm² | 16~14 | 4 | #8 | 4.3 | 6.6 | 7.9 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-4L | 1.5~2.5mm² | 16~14 | 4 | #8 | 4.3 | 8.5 | 7.75 | 16.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-5S | 1.5~2.5mm² | 16~14 | 5 | #10 | 5.3 | 8.5 | 7.75 | 16.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-5L | 1.5~2.5mm² | 16~14 | 5 | #10 | 5.3 | 9.5 | 7.5 | 17.1 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-6 | 1.5~2.5mm² | 16~14 | 6 | 1/4 “ | 6.5 | 12.0 | 11.0 | 21.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-8 | 1.5~2.5mm² | 16~14 | 8 | 5/16 “ | 8.5 | 12.0 | 11.0 | 21.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-10 | 1.5~2.5mm² | 16~14 | 10 | 3/8 “ | 10.5 | 13.6 | 13.9 | 25.5 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB2-12 | 1.5~2.5mm² | 16~14 | 12 | 1/2 “ | 13.0 | 19.2 | 16.0 | 30.4 | 4.8 | 2.3 | 4.0 | 0.8 |
| RNB3.5-4 | 2.5~4mm² | 14~12 | 4 | #8 | 4.3 | 8.0 | 7.7 | 17.7 | 6.0 | 2.9 | 5.0 | 1.0 |
| RNB3.5-5S | 2.5~4mm² | 14~12 | 5 | #10 | 5.3 | 8.0 | 7.7 | 17.7 | 6.0 | 2.9 | 5.0 | 1.0 |
| RNB3.5-6 | 2.5~4mm² | 14~12 | 6 | 1/4 “ | 6.5 | 12.0 | 9.4 | 21.4 | 6.0 | 2.9 | 5.0 | 1.0 |
| RNB3.5-8 | 2.5~4mm² | 14~12 | 8 | 5/16 “ | 8.5 | 15.0 | 13.5 | 27.0 | 6.0 | 2.9 | 5.0 | 1.0 |
| RNB5.5-3.5 | 4~6mm² | 12~10 | 3.5 | #6 | 3.7 | 7.2 | 5.9 | 15.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-4S | 4~6mm² | 12~10 | 4 | #8 | 4.3 | 7.2 | 5.9 | 15.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-4L | 4~6mm² | 12~10 | 4 | #8 | 4.3 | 9.5 | 8.85 | 19.6 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-5 | 4~6mm² | 12~10 | 5 | #10 | 5.3 | 9.5 | 8.85 | 19.6 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-6 | 4~6mm² | 12~10 | 6 | 1/4 “ | 6.5 | 12.0 | 10.5 | 22.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-8 | 4~6mm² | 12~10 | 8 | 5/16 “ | 8.5 | 15.0 | 13.5 | 27.0 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-10 | 4~6mm² | 12~10 | 10 | 3/8 “ | 10.5 | 15.0 | 13.5 | 27.0 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB5.5-12 | 4~6mm² | 12~10 | 12 | 1/2 “ | 13.0 | 19.2 | 16.0 | 31.6 | 6.0 | 3.4 | 5.5 | 1.0 |
| RNB8-4S | 6~10mm² | 8 | 4 | #8 | 4.3 | 8.0 | 9.3 | 21.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-4L | 6~10mm² | 8 | 4 | #8 | 4.3 | 12.0 | 9.3 | 23.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-5S | 6~10mm² | 8 | 5 | #10 | 5.3 | 8.8 | 9.3 | 22.2 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-5M | 6~10mm² | 8 | 5 | #10 | 5.3 | 12.0 | 9.3 | 23.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-5L | 6~10mm² | 8 | 5 | #10 | 5.3 | 15.0 | 13.8 | 29.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-6S | 6~10mm² | 8 | 6 | 1/4 “ | 6.5 | 12.0 | 9.3 | 23.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-8 | 6~10mm² | 8 | 8 | 5/16 “ | 8.5 | 15.0 | 13.8 | 29.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-10 | 6~10mm² | 8 | 10 | 3/8 “ | 10.5 | 15.0 | 13.8 | 29.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB8-12 | 6~10mm² | 8 | 12 | 1/2 “ | 13.0 | 20.0 | 15.0 | 33.5 | 8.5 | 4.5 | 7.2 | 1.2 |
| RNB14-4 | 10~16mm² | 6 | 4 | #8 | 4.3 | 12.0 | 13.3 | 29.8 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB14-5 | 10~16mm² | 6 | 5 | #10 | 5.3 | 12.0 | 13.3 | 29.8 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB14-6S | 10~16mm² | 6 | 6 | 1/4 “ | 6.5 | 12.0 | 13.3 | 29.8 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB14-8 | 10~16mm² | 6 | 8 | 5/16 “ | 8.5 | 16.0 | 14.0 | 32.5 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB14-10 | 10~16mm² | 6 | 10 | 3/8 “ | 10.5 | 16.0 | 14.0 | 32.5 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB14-12 | 10~16mm² | 6 | 12 | 1/2 “ | 13.0 | 22.0 | 19.5 | 41.0 | 10.5 | 5.8 | 9.0 | 1.4 |
| RNB22-4 | 16~25mm² | 4 | 4 | #8 | 4.3 | 12.2 | 15.1 | 33.2 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-5S | 16~25mm² | 4 | 5 | #10 | 5.3 | 12.2 | 15.1 | 33.2 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-5L | 16~25mm² | 4 | 5 | #10 | 5.3 | 16.5 | 13.5 | 33.7 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-6S | 16~25mm² | 4 | 6 | 1/4 “ | 6.5 | 12.2 | 15.1 | 33.2 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-6L | 16~25mm² | 4 | 6 | 1/4 “ | 6.5 | 16.5 | 13.5 | 33.7 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-8 | 16~25mm² | 4 | 8 | 5/16 “ | 8.5 | 16.5 | 13.5 | 33.7 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-10 | 16~25mm² | 4 | 10 | 3/8 “ | 10.5 | 16.5 | 13.5 | 33.7 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB22-12 | 16~25mm² | 4 | 12 | 1/2 “ | 13.0 | 22.0 | 19.5 | 42.5 | 12.0 | 8.3 | 11.5 | 1.6 |
| RNB38-5 | 35mm² | 2 | 5 | #10 | 5.3 | 15.3 | 17.4 | 39.0 | 14.0 | 9.4 | 13.3 | 1.7 |
| RNB38-6S | 35mm² | 2 | 6 | 1/4 “ | 6.5 | 15.3 | 17.4 | 39.0 | 14.0 | 9.4 | 13.3 | 1.7 |
| RNB38-8S | 35mm² | 2 | 8 | 5/16 “ | 8.5 | 15.3 | 17.4 | 39.0 | 14.0 | 9.4 | 13.3 | 1.7 |
| RNB38-10S | 35mm² | 2 | 10 | 3/8 “ | 10.5 | 15.3 | 17.4 | 39.0 | 14.0 | 9.4 | 13.3 | 1.7 |
| RNB38-12 | 35mm² | 2 | 12 | 1/2 “ | 13.0 | 22.0 | 17.7 | 42.7 | 14.0 | 9.4 | 13.3 | 1.7 |
| RNB60-6 | 50~70mm² | 1/0 | 6 | 1/4 | 6.4 | 22.0 | 20.7 | 49.7 | 18.0 | 12.0 | 15.4 | |
| RNB60-8 | 50~70mm² | 1/0 | 8 | 5/16 | 8.4 | 22.0 | 20.7 | 49.7 | 18.0 | 12.0 | 15.4 | |
| RNB60-10 | 50~70mm² | 1/0 | 10 | 3/8 | 10.5 | 22.0 | 20.7 | 49.7 | 18.0 | 12.0 | 15.4 | |
| RNB60-12 | 50~70mm² | 1/0 | 12 | 1/2 | 13.0 | 22.0 | 20.7 | 49.7 | 18.0 | 12.0 | 15.4 | |
| RNB60-14 | 50~70mm² | 1/0 | 14 | 9/16 | 15.0 | 32.0 | 23.5 | 57.5 | 18.0 | 12.0 | 15.4 | |
| RNB60-16 | 50~70mm² | 1/0 | 16 | 5/8 | 17.0 | 32.0 | 23.5 | 57.5 | 18.0 | 12.0 | 15.4 | |
| RNB60-18 | 50~70mm² | 1/0 | 18 | 11/16 | 19.0 | 32.0 | 23.5 | 57.5 | 18.0 | 12.0 | 15.4 | |
| RNB60-20 | 50~70mm² | 1/0 | 20 | 3/4 | 21.0 | 32.0 | 23.5 | 57.5 | 18.0 | 12.0 | 15.4 | |
| RNB70-6 | 70~95mm² | 2/0 | 6 | 1/4 | 6.4 | 22.0 | 20.0 | 51.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-8 | 70~95mm² | 2/0 | 8 | 5/16 | 8.4 | 22.0 | 20.0 | 51.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-10 | 70~95mm² | 2/0 | 10 | 3/8 | 10.5 | 22.0 | 20.0 | 51.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-12 | 70~95mm² | 2/0 | 12 | 1/2 | 13.0 | 22.0 | 20.0 | 51.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-14 | 70~95mm² | 2/0 | 14 | 9/16 | 15.0 | 32.0 | 26.0 | 61.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-16 | 70~95mm² | 2/0 | 16 | 5/8 | 17.0 | 32.0 | 26.0 | 61.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-18 | 70~95mm² | 2/0 | 18 | 11/16 | 19.0 | 32.0 | 26.0 | 61.0 | 19.0 | 13.5 | 17.5 | |
| RNB70-20 | 70~95mm² | 2/0 | 20 | 3/4 | 21.0 | 32.0 | 26.0 | 61.0 | 19.0 | 13.5 | 17.5 | |
| RNB80-6 | 95~120mm² | 3/0 | 6 | 1/4 | 6.4 | 27.0 | 20.7 | 54.2 | 20.0 | 15.0 | 19.5 | |
| RNB80-8 | 95~120mm² | 3/0 | 8 | 5/16 | 8.4 | 27.0 | 20.7 | 54.2 | 20.0 | 15.0 | 19.5 | |
| RNB80-10 | 95~120mm² | 3/0 | 10 | 3/8 | 10.5 | 27.0 | 20.7 | 54.2 | 20.0 | 15.0 | 19.5 | |
| RNB80-12 | 95~120mm² | 3/0 | 12 | 1/2 | 13.0 | 27.0 | 20.7 | 54.2 | 20.0 | 15.0 | 19.5 | |
| RNB80-14 | 95~120mm² | 3/0 | 14 | 9/16 | 15.0 | 32.0 | 32.0 | 68.0 | 20.0 | 15.0 | 19.5 | |
| RNB80-16 | 95~120mm² | 3/0 | 16 | 5/8 | 17.0 | 32.0 | 32.0 | 68.0 | 20.0 | 15.0 | 19.5 | |
| RNB80-18 | 95~120mm² | 3/0 | 18 | 11/16 | 19.0 | 32.0 | 32.0 | 68.0 | 20.0 | 15.0 | 19.5 | |
| RNB80-20 | 95~120mm² | 3/0 | 20 | 3/4 | 21.0 | 32.0 | 32.0 | 68.0 | 20.0 | 15.0 | 19.5 | |
| RNB100-6 | 120~150mm² | 4/0 | 6 | 1/4 | 6.4 | 28.5 | 20.4 | 55.6 | 21.0 | 17.0 | 22.5 | |
| RNB100-8 | 120~150mm² | 4/0 | 8 | 5/16 | 8.4 | 28.5 | 20.4 | 55.6 | 21.0 | 17.0 | 22.5 | |
| RNB100-10 | 120~150mm² | 4/0 | 10 | 3/8 | 10.5 | 28.5 | 20.4 | 55.6 | 21.0 | 17.0 | 22.5 | |
| RNB100-12 | 120~150mm² | 4/0 | 12 | 1/2 | 13.0 | 28.5 | 20.4 | 55.6 | 21.0 | 17.0 | 22.5 | |
| RNB100-14 | 120~150mm² | 4/0 | 14 | 9/16 | 15.0 | 32.0 | 32.0 | 69.0 | 21.0 | 17.0 | 22.5 | |
| RNB100-16 | 120~150mm² | 4/0 | 16 | 5/8 | 17.0 | 32.0 | 32.0 | 69.0 | 21.0 | 17.0 | 22.5 | |
| RNB100-18 | 120~150mm² | 4/0 | 18 | 11/16 | 19.0 | 32.0 | 32.0 | 69.0 | 21.0 | 17.0 | 22.5 | |
| RNB100-20 | 120~150mm² | 4/0 | 20 | 3/4 | 21.0 | 32.0 | 32.0 | 69.0 | 21.0 | 17.0 | 22.5 | |
| RNB150-8 | 150~185mm² | 250/300 | 8 | 5/16 | 8.4 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-10 | 150~185mm² | 250/300 | 10 | 3/8 | 10.5 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-12 | 150~185mm² | 250/300 | 12 | 1/2 | 13.0 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-14 | 150~185mm² | 250/300 | 14 | 9/16 | 15.0 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-16 | 150~185mm² | 250/300 | 16 | 5/8 | 17.0 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-18 | 150~185mm² | 250/300 | 18 | 11/16 | 19.0 | 36.5 | 36.0 | 81.0 | 27.0 | 20.0 | 27.0 | |
| RNB150-20 | 150~185mm² | 250/300 | 20 | 3/4 | 21.0 | 36.5 | 36.0 | 81.0 | 27.0 | 20.0 | 27.0 | |
| RNB180-8 | 185~240mm² | 300/350 | 8 | 5/16 | 8.4 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 | |
| RNB180-10 | 185~240mm² | 300/350 | 10 | 3/8 | 10.5 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 | |
| RNB180-12 | 185~240mm² | 300/350 | 12 | 1/2 | 13.0 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 | |
| RNB180-14 | 185~240mm² | 300/350 | 14 | 9/16 | 15.0 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 | |
| RNB180-16 | 185~240mm² | 300/350 | 16 | 5/8 | 17.0 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 | |
| RNB180-18 | 185~240mm² | 300/350 | 18 | 11/16 | 19.0 | 38.5 | 39 | 86.6 | 28.5 | 21.0 | 28.6 | |
| RNB180-20 | 185~240mm² | 300/350 | 20 | 3/4 | 21.0 | 38.5 | 39 | 86.6 | 28.5 | 21.0 | 28.6 | |
| RNB200-8 | 240~300mm² | 400/500 | 8 | 5/16 | 8.4 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-10 | 240~300mm² | 400/500 | 10 | 3/8 | 10.5 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-12 | 240~300mm² | 400/500 | 12 | 1/2 | 13.0 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-14 | 240~300mm² | 400/500 | 14 | 9/16 | 15.0 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-16 | 240~300mm² | 400/500 | 16 | 5/8 | 17.0 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-18 | 240~300mm² | 400/500 | 18 | 11/16 | 19.0 | 44.0 | 37.5 | 91.0 | 31.5 | 24.0 | 32.6 | |
| RNB200-20 | 240~300mm² | 400/500 | 20 | 3/4 | 21.0 | 44.0 | 37.5 | 91.0 | 31.5 | 24.0 | 32.6 | |
| RNB325-8 | 300~400mm² | 500/600 | 8 | 5/16 | 8.4 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 | |
| RNB325-10 | 300~400mm² | 500/600 | 10 | 3/8 | 10.5 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 | |
| RNB325-12 | 300~400mm² | 500/600 | 12 | 7/16 | 13.0 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 | |
| RNB325-14 | 300~400mm² | 500/600 | 14 | 9/16 | 15.0 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 | |
| RNB325-16 | 300~400mm² | 500/600 | 16 | 5/8 | 17.0 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 | |
| RNB325-18 | 300~400mm² | 500/600 | 18 | 11/16 | 19.0 | 50.5 | 45.0 | 105.7 | 35.5 | 28.5 | 37.1 | |
| RNB325-20 | 300~400mm² | 500/600 | 20 | 3/4 | 21.0 | 50.5 | 45.0 | 105.7 | 35.5 | 28.5 | 37.1 | |
| RNB325-22 | 300~400mm² | 500/600 | 22 | 7/8 | 23.0 | 50.5 | 45.0 | 105.7 | 35.5 | 28.5 | 37.1 | |
| RNB325-24 | 300~400mm² | 500/600 | 24 | 15/16 | 25.0 | 50.5 | 45.0 | 105.7 | 35.5 | 28.5 | 37.1 | |
| RNB325-27 | 300~400mm² | 500/600 | 27 | 1 | 28.0 | 50.5 | 45.0 | 105.7 | 35.5 | 28.5 | 37.1 |
| ITEM NO . | Wire size | Wire size | Stud size | Stud size | d2 | W | F | L | H | d1 | D | T |
| mm2 | AWG | Metric | American | mm | mm | mm | mm | mm | mm | mm | mm | |
| SNB1.25-3.2 | 0.5~1.5mm² | 22~16 | 3 | #4 | 3.2 | 5.7 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-3.5S | 0.5~1.5mm² | 22~16 | 3.5 | #6 | 3.7 | 5.7 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-3.5L | 0.5~1.5mm² | 22~16 | 3.5 | #6 | 3.7 | 6.4 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-4S | 0.5~1.5mm² | 22~16 | 4 | #8 | 4.3 | 6.4 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-4M | 0.5~1.5mm² | 22~16 | 4 | #8 | 4.3 | 7.2 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-4L | 0.5~1.5mm² | 22~16 | 4 | #8 | 4.3 | 8.1 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-5S | 0.5~1.5mm² | 22~16 | 5 | #10 | 5.3 | 8.1 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-5L | 0.5~1.5mm² | 22~16 | 5 | #10 | 5.3 | 9.5 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-6S | 0.5~1.5mm² | 22~16 | 6 | 1/4 “ | 6.5 | 9.5 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-6L | 0.5~1.5mm² | 22~16 | 6 | 1/4 “ | 6.5 | 12.0 | 11.0 | 22.0 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB1.25-8 | 0.5~1.5mm² | 22~16 | 8 | 5/16 “ | 8.5 | 13.5 | 11.5 | 21.5 | 4.8 | 1.7 | 3.4 | 0.8 |
| SNB2-3.2 | 1.5~2.5mm² | 16~14 | 3 | #4 | 3.2 | 5.7 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-3.5S | 1.5~2.5mm² | 16~14 | 3.5 | #6 | 3.7 | 5.7 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-3.5L | 1.5~2.5mm² | 16~14 | 3.5 | #6 | 3.7 | 6.0 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-4S | 1.5~2.5mm² | 16~14 | 4 | #8 | 4.3 | 6.4 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-4M | 1.5~2.5mm² | 16~14 | 4 | #8 | 4.3 | 7.2 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-4L | 1.5~2.5mm² | 16~14 | 4 | #8 | 4.3 | 8.1 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-5S | 1.5~2.5mm² | 16~14 | 5 | #10 | 5.3 | 8.1 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-5L | 1.5~2.5mm² | 16~14 | 5 | #10 | 5.3 | 9.5 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-6S | 1.5~2.5mm² | 16~14 | 6 | 1/4 “ | 6.5 | 9.5 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-6L | 1.5~2.5mm² | 16~14 | 6 | 1/4 “ | 6.5 | 12.0 | 11.0 | 22.0 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB2-8 | 1.5~2.5mm² | 16~14 | 8 | 5/16 “ | 8.5 | 13.5 | 11.5 | 21.8 | 4.8 | 2.3 | 4.0 | 0.8 |
| SNB3.5-4 | 2.5~4mm² | 14~12 | 4 | #8 | 4.3 | 8.0 | 7.7 | 18.3 | 6.0 | 2.9 | 5.0 | 1.0 |
| SNB3.5-5 | 2.5~4mm² | 14~12 | 5 | #10 | 5.3 | 8.0 | 7.7 | 18.3 | 6.0 | 2.9 | 5.0 | 1.0 |
| SNB3.5-6 | 2.5~4mm² | 14~12 | 6 | 1/4 “ | 6.5 | 12.0 | 9.1 | 21.5 | 6.0 | 2.9 | 5.0 | 1.0 |
| SNB3.5-8 | 2.5~4mm² | 14~12 | 8 | 5/16 “ | 8.5 | 14.0 | 11.5 | 23.7 | 6.0 | 2.9 | 5.0 | 1.0 |
| SNB5.5-3.5 | 4~6mm² | 12~10 | 3.5 | #6 | 3.7 | 8.3 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-4SS | 4~6mm² | 12~10 | 4 | #8 | 4.3 | 7.2 | 7.5 | 17.4 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-4S | 4~6mm² | 12~10 | 4 | #8 | 4.3 | 8.3 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-4L | 4~6mm² | 12~10 | 4 | #8 | 4.3 | 9.0 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-5 | 4~6mm² | 12~10 | 5 | #10 | 5.3 | 9.0 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-6S | 4~6mm² | 12~10 | 6 | 1/4 “ | 6.5 | 9.0 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-6L | 4~6mm² | 12~10 | 6 | 1/4 “ | 6.5 | 12.0 | 12.0 | 24.7 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB5.5-8 | 4~6mm² | 12~10 | 8 | 5/16 “ | 8.5 | 14.0 | 11.5 | 23.7 | 6.0 | 3.4 | 5.5 | 1.0 |
| SNB8-4 | 6~10mm² | 8 | 4 | #8 | 4.3 | 9.0 | 7.6 | 20.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| SNB8-5 | 6~10mm² | 8 | 5 | #10 | 5.3 | 9.0 | 8.1 | 20.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| SNB8-6 | 6~10mm² | 8 | 6 | 1/4 “ | 6.5 | 12.0 | 9.2 | 23.8 | 8.5 | 4.5 | 7.2 | 1.2 |
| SNB8-8 | 6~10mm² | 8 | 8 | 5/16 “ | 8.5 | 13.8 | 10.7 | 25.4 | 8.5 | 4.5 | 7.2 | 1.2 |
| SNB14-4 | 10~16mm² | 6 | 4 | #8 | 4.3 | 9.0 | 9.5 | 25.5 | 10.5 | 5.8 | 9 | 1.4 |
| SNB14-5 | 10~16mm² | 6 | 5 | #10 | 5.3 | 9.0 | 9.5 | 25.5 | 10.5 | 5.8 | 9 | 1.4 |
| SNB14-6 | 10~16mm² | 6 | 6 | 1/4 “ | 6.5 | 11.0 | 9.5 | 25.5 | 10.5 | 5.8 | 9 | 1.4 |
| SNB14-8 | 10~16mm² | 6 | 8 | 5/16 “ | 8.5 | 13.8 | 10.7 | 28.5 | 10.5 | 5.8 | 9 | 1.4 |
| SNB22-5 | 16~25mm² | 4 | 5 | #10 | 5.3 | 11.0 | 9.5 | 27.8 | 12 | 7.7 | 11.5 | 1.6 |
| SNB22-6 | 16~25mm² | 4 | 6 | 1/4 “ | 6.5 | 11.0 | 9.5 | 27.8 | 12 | 7.7 | 11.5 | 1.6 |
| SNB22-8 | 16~25mm² | 4 | 8 | 5/16 “ | 8.5 | 16.5 | 13.5 | 33.5 | 12 | 7.7 | 11.5 | 1.6 |
They are used to connect electrical wires to screw or stud terminals where a compact connection or separate insulation method is required.
Ring terminals have closed-loop tongues for stud retention, while fork terminals have open U-shaped tongues for faster installation and removal.
Non-insulated terminals offer a compact design, visible crimp area and flexibility to add separate insulation according to the application.
Yes, wherever required by the electrical installation. Heat-shrink tubing, insulating sleeves or other suitable protection may be used.
Tin-plated copper is standard, with brass available upon request. Ring and fork terminals are available in multiple wire sizes and stud dimensions.
1.Material: steel and plastic
2.Suitable terminal size: 0.25-6 mm2 (24-10 AWG)
3.Features: Multilateral self-adjusting, ratchet release switch, comfortable grip, plier head is made of high hardness alloy steel, with good toughness and longer service life.
4.Certificates: CE, RoHS, SGS
H and U type screw terminal blocks with brass conductive inserts and PE, PP or PA housings for lighting, appliances and electrical wiring.
Tin-plated copper non-insulated ring and fork terminals for compact electrical connections. Multiple wire sizes, stud holes and custom options.
Tin-plated copper heat shrink butt connectors for wire repairs and cable extensions. BHT series, 0.2–6 mm², color-coded sizes and moisture-protection options.
Optimized by Seraphinite Accelerator
