1. Main Tool Type: Self-Adjusting Ferrule Crimping Pliers
2. Crimping Mechanism: Ratchet
3. Crimp Profile: Square / Four-Sided
4. Tool Head: Hardened Steel
5. Handle: Ergonomic Plastic Grip
6. Compatible Terminals: Insulated and Non-Insulated Wire End Ferrules
7. Additional Tools: Terminal Crimpers, Cable Lug Crimpers, Wire Strippers and Cutters
8. Packaging: Standard and customized options

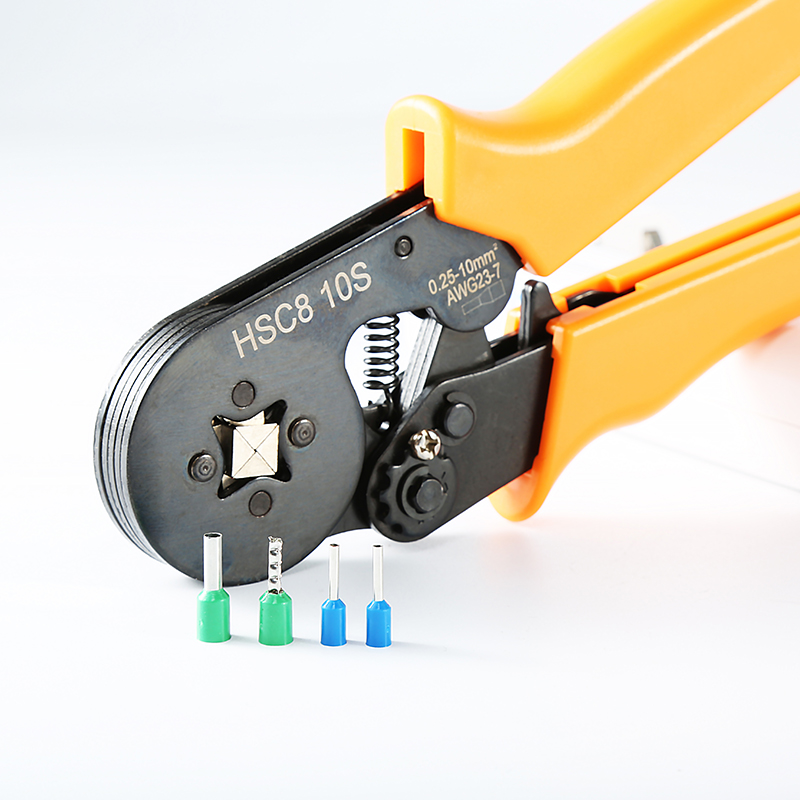

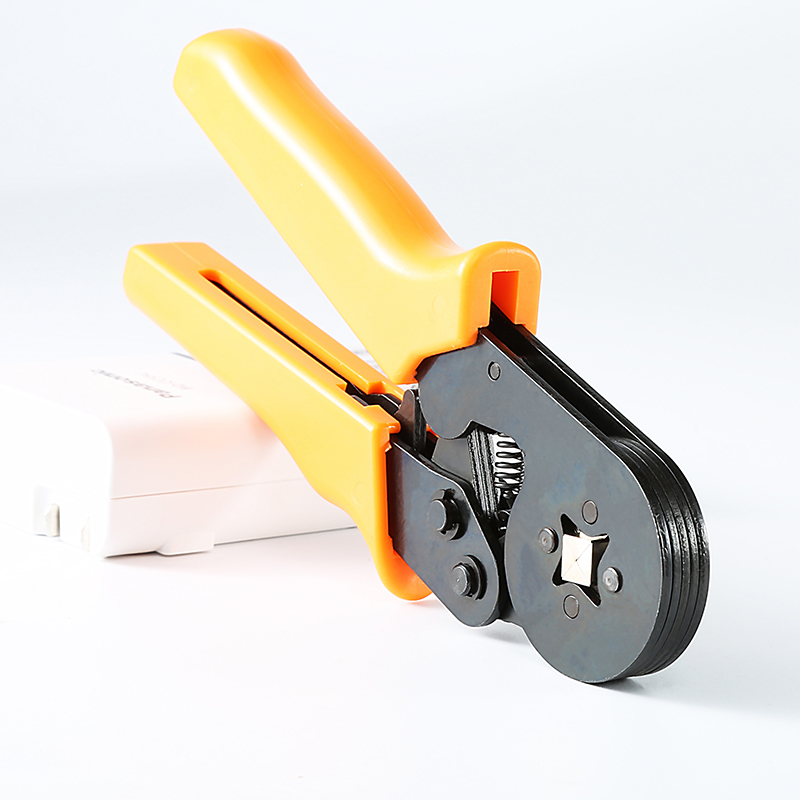

Consistent Crimping. Less Manual Adjustment. Faster Wire Termination. Self-adjusting ferrule crimping pliers are designed for crimping insulated and non-insulated wire end ferrules used in electrical control panels, terminal blocks and industrial wiring assemblies.

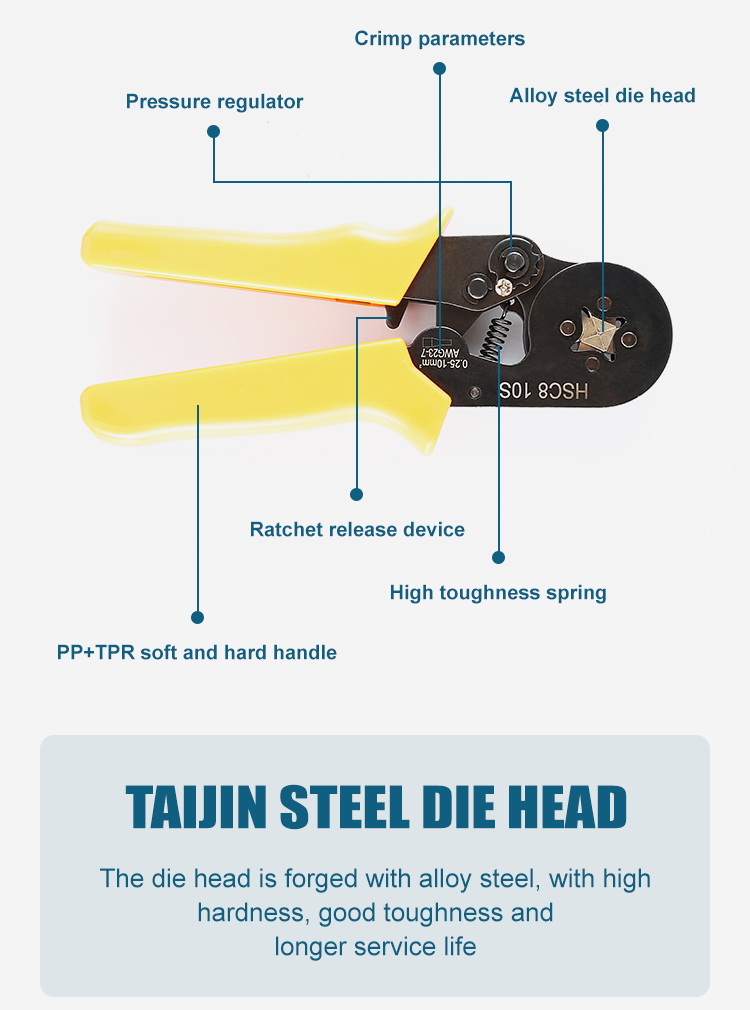

Featuring a multi-sided crimping head, ratchet mechanism and ergonomic handles, these tools help simplify wire termination and provide consistent crimping results when used with compatible ferrules.
The crimping jaws automatically adapt to compatible ferrule sizes, reducing the need to change dies between different wire cross-sections.
Key advantages include:
In addition to ferrule crimping pliers, other hand tools are available for different wire processing requirements.
Tool and die selection depends on the terminal design and conductor size.
Select according to the terminal type, conductor cross-section, crimp profile, compatible dies and required installation method.
Different electrical terminals require different crimping tools. Using the correct tool and die combination is essential for reliable connections.
Request a Quote: Send your terminal type, wire size, preferred tool model and required quantity.
| Terminal Type | Recommended Tool | Main Selection Factor |
|---|---|---|
| Single Wire Ferrules | Self-Adjusting Ferrule Crimper | Wire size and crimp profile |
| Twin Wire Ferrules | Twin-Ferrule Compatible Crimper | Combined conductor capacity |
| Vinyl / Nylon Ring & Fork Terminals | Insulated Terminal Crimper | Insulation and barrel design |
| Non-Insulated Ring & Fork Terminals | Non-Insulated Terminal Crimper | Barrel size and die profile |
| Male & Female Quick Disconnects | Quick Disconnect Terminal Crimper | Terminal and crimp barrel type |
| SC Copper Cable Lugs | Mechanical / Hydraulic Lug Crimper | Cable size and specified crimp die |
| Wire Insulation Removal | Manual / Automatic Wire Stripper | Wire size and insulation type |
Manual and automatic wire stripping pliers are available for removing insulation before crimping.
Correct wire preparation helps prevent damaged strands, uneven stripping lengths and poor crimp connections.
They are used to crimp insulated and non-insulated wire end ferrules onto stranded conductors for electrical terminal connections.
The jaws adapt to compatible ferrule sizes, reducing manual die adjustment when working with different conductor cross-sections.
No. Ring terminals, fork terminals, quick disconnects, wire ferrules and large cable lugs may require different crimping profiles and tools.
The ratchet mechanism helps control the crimping cycle. Proper crimp quality still depends on the correct ferrule, wire size, tool and installation procedure.
Yes. Additional options include insulated terminal crimpers, non-insulated terminal crimpers, cable lug crimpers, manual and automatic wire strippers, and wire cutters.
SC type tin-plated copper cable lugs for copper cable termination and bolted electrical connections. Multiple conductor sizes and mounting holes.
Self-adjusting ratchet crimping pliers for wire ferrules. Insulated terminal crimpers, cable lug crimpers, wire strippers and cutters also available.
H and U type screw terminal blocks with brass conductive inserts and PE, PP or PA housings for lighting, appliances and electrical wiring.
Tin-plated copper non-insulated ring and fork terminals for compact electrical connections. Multiple wire sizes, stud holes and custom options.
