1.Features: The push-mount part outside the head of the cable tie can be pushed into a hole, tight and fix. The cable ties are tensile strong, Anti-Acid, Anti-erosion, not easy to aging.
2.Material：UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.

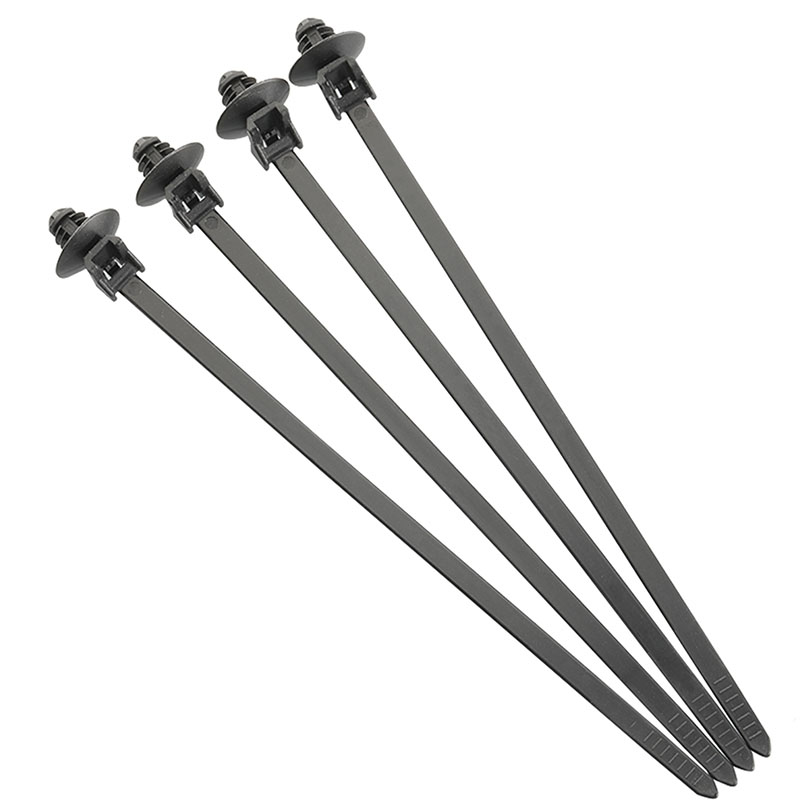

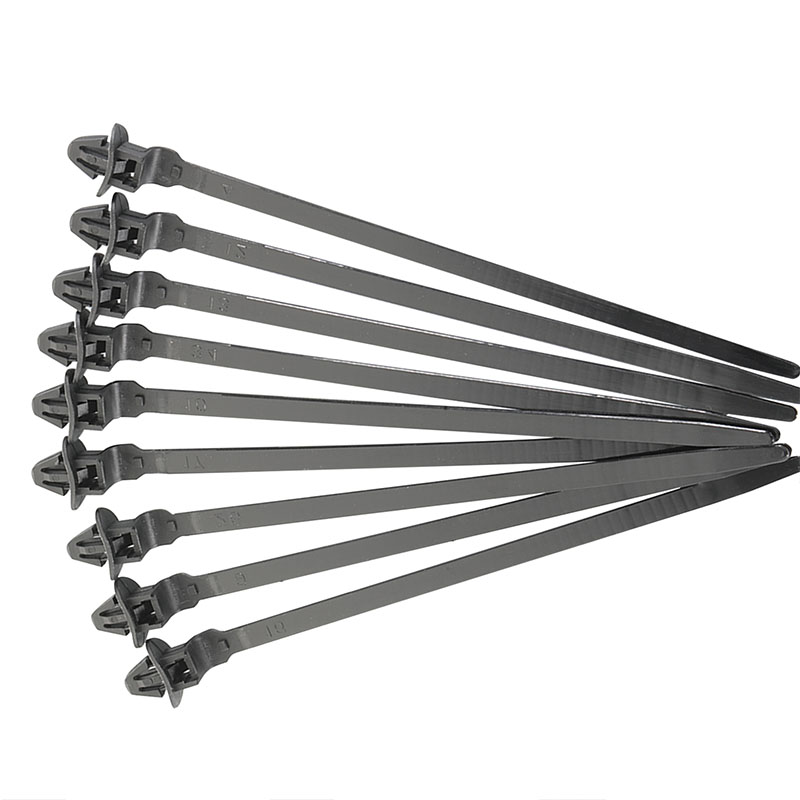

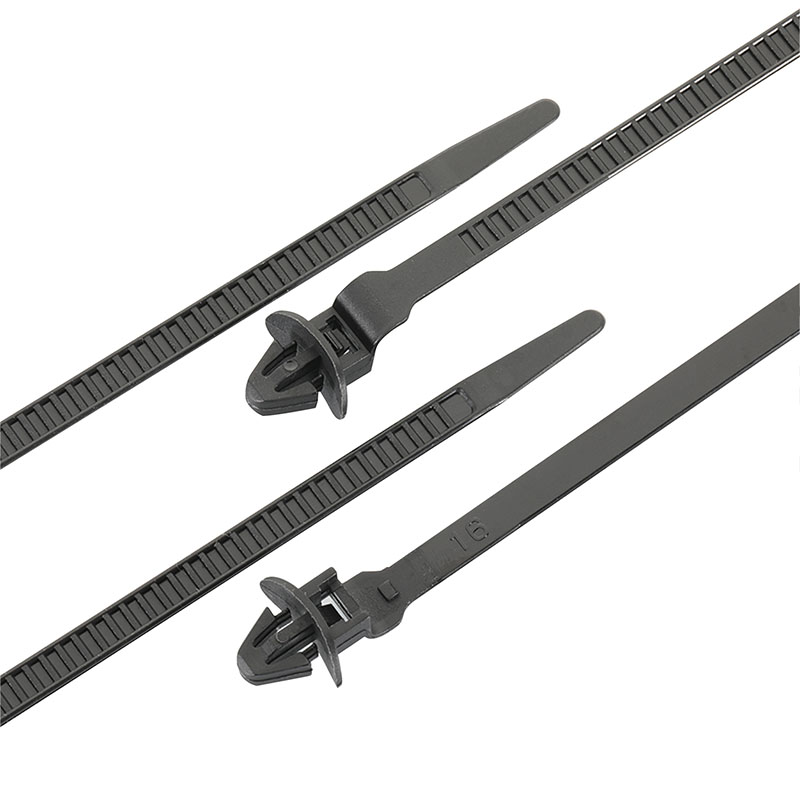

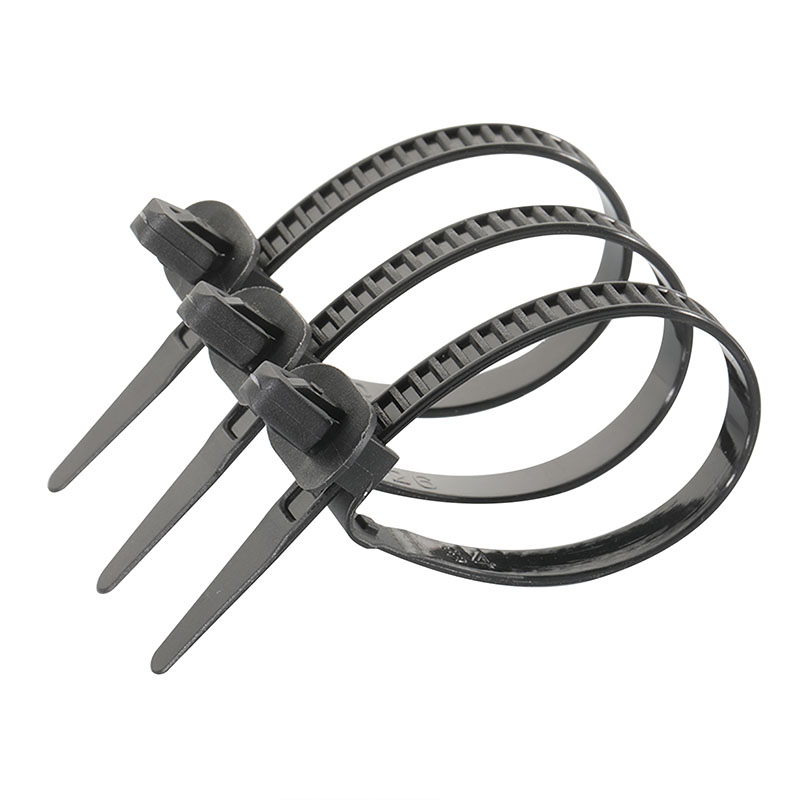

Niuli Push Mount Cable Ties combine cable bundling and panel mounting in one piece, providing a fast and simple solution for securing wire harnesses to metal or plastic panels. The integrated push-mount head snaps into a matched mounting hole, eliminating the need for separate cable tie mounts, screws or adhesives.
Push mount cable ties are designed for high-volume assembly where installation speed and consistent wire routing are important. Simply insert the mounting head into the panel hole, bundle the wires and tighten the tie. This one-piece design helps reduce components, assembly steps and installation time.
In automotive, appliances and industrial equipment, vibration and movement can cause unsecured wire harnesses to rub against panels or nearby components. The integrated mechanical mount keeps the cable bundle in a defined position and helps reduce unwanted harness movement.

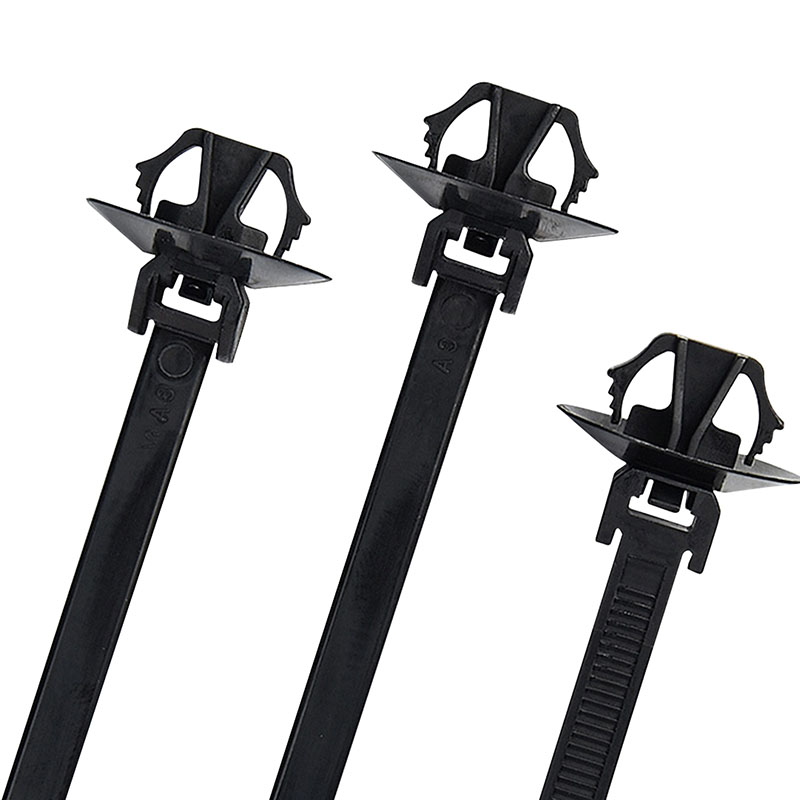

Different panel designs require different mounting-head sizes. Niuli Push Mount Cable Ties are available with multiple mounting-hole diameters, cable lengths and tensile-strength options to match different wire bundles and panel applications. Correct hole diameter and panel thickness are important for secure installation and pull-out performance.
Suitable for:
Manufactured from PA66, Niuli Push Mount Cable Ties provide reliable flexibility and mechanical strength for professional cable-management applications.
Available tensile-strength options range from approximately 18 lb / 8 kg to 50 lb / 22 kg, depending on model.
Recommended operating temperature: -40°C to +85°C.
Multiple sizes and mounting-head designs are available.
Free samples can be provided for fit and installation testing before bulk production, which is especially recommended for OEM and panel-mount applications.
| Item No. | Width(W) | Length(L) | Hole Diameter(D) | Max.Bundle Dia. (E) | Min.loop tensile strength | |||||
| mm | inch | mm | inch | mm | inch | mm | inch | LBS | KGS | |
| NL-2.5x100PM | 2.5 | 0.1 | 100 | 4 | 4.8 | 0.19 | 22 | 0.87 | 18 | 8 |
| NL-3.6x120PM | 3.6 | 0.14 | 120 | 4.7 | 4.0 | 0.16 | 25 | 0.98 | 40 | 18 |
| NL-3.6x150PM | 3.6 | 0.14 | 150 | 6 | 5.4 | 0.21 | 35 | 1.38 | 40 | 18 |
| NL-4.8x120PM | 4.8 | 0.19 | 120 | 4.7 | 6.4 | 0.25 | 25 | 0.98 | 50 | 22 |
| NL-4.8x160PM | 4.8 | 0.19 | 160 | 6.3 | 6.4 | 0.25 | 38 | 1.5 | 50 | 22 |
| NL-4.8x190PM | 4.8 | 0.19 | 190 | 7.5 | 6.4 | 0.25 | 46 | 1.81 | 50 | 22 |
They bundle cables and secure the wire harness directly to a metal or plastic panel in one component.
No. The integrated mounting head pushes directly into a matched panel hole, reducing additional hardware and assembly steps.
Match the cable tie’s specified mounting-hole diameter and applicable panel thickness to your panel design. Samples are recommended before finalizing tooling.
Yes. They are widely used for automotive wire harness routing, as well as appliances, electrical panels and industrial equipment.
Yes. Free samples are available to verify hole fit, panel retention and wire-bundle size before bulk ordering.
Send us your required size, tensile strength, application and operating environment. Our team can recommend a suitable specification for your project.
Soft, adjustable and reusable cable ties designed for fiber optic, network, data and other sensitive cables that require frequent access or lower bundling pressure.
Designed for Low-Profile Fastening: Niuli In-Line Cable Ties feature a 180° parallel-entry locking design that creates a flatter profile than conventional cable ties. The compact head and smooth outward-facing surface make them especially suitable for applications where protruding cable tie heads may snag, interfere with surrounding materials or create uncomfortable contact.
1.Features: The Handcuffs like the connection of two cable ties, which can bind or fix two pipes or cables at the same time, also suitable for police, security guard or where someone need to be restrained.
2.Material：UL Approved Nylon 66.
3.Flammability: UL 94V-2.
4.Installation temperature：-10℃ to 85℃.
5.Working temperature：-40℃ to 85℃.
6.Color: Natural (white), Black, other colors are available as requested.
7.Certificates: UL, CE, RoHS, REACH, SGS.
Heavy-duty PA66 double-loop disposable restraint ties for professional security and controlled-access applications. Lightweight, compact and available for OEM supply.
